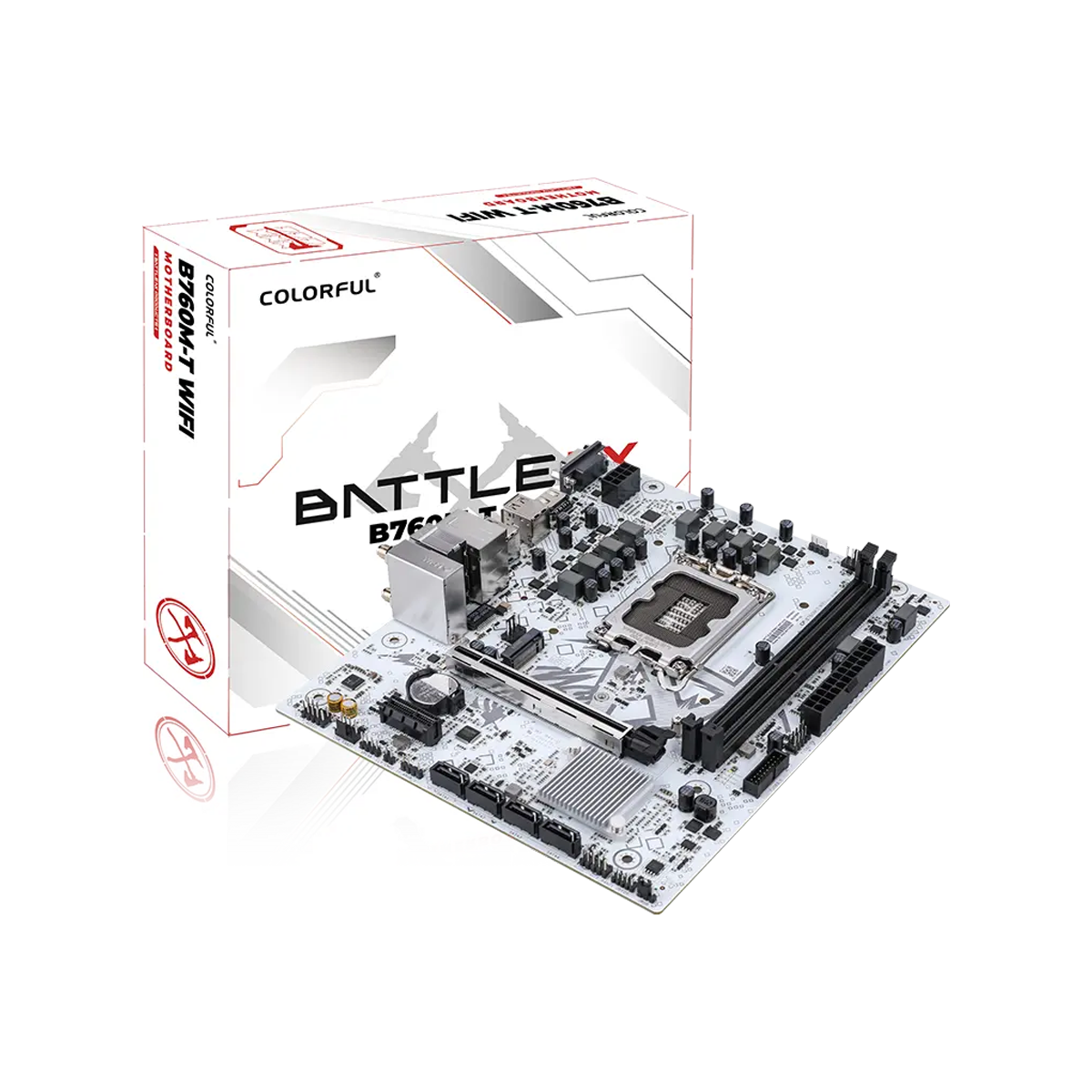

Colorful BATTLE-AX B760M-T WIFI V21A DDR4 M-ATX Gaming Motherboard

Colorful BATTLE-AX B760M-T WIFI V21A DDR4 M-ATX Gaming Motherboard

العلامة التجارية: Colorful

عادي: 449.00 SAR

أُوكَازيُون: 449.00 SAR
عادي

سعر الوحدة: لكل

السعر يشمل ضريبة القيمة المضافة.

رقم الموديل: 110001221509

أحصل علي خصم %15

استخدم الكود: SAB15

أرسل لي بريدًا إلكترونيًا عندما يكون هذا متاحًا

المميزات الرئيسية:

Provides 4 USB 3.2 Gen 1 Type-A high-speed interfaces
Provides 2 USB 2.0 interfaces
Provides 1 PCIe 4.0 x4 M.2 SSD slot
Provides 2 5V 3-pin ARGB pins, supports iGame Center lighting control software
Provides HDMI+VGA display interface
Supports iGame Center lighting control software, can synchronously adjust the lighting effects of the radiator, cooling fan and memory
Six major protection technologies, more stable product operation
200 process strict testing, quality guaranteed
PCB atomization process fully upgraded

تفاصيل
المواصفات التقنية
التنزيلات
التعليمات

POWER YOUR NEXT GAMING BUILD

Colorful BATTLE-AX B760M-T WIFI V21A DDR4 Support for 12th, 13th and 14th Gen Intel® processors, DDR4 memory up to 64GB, and PCIe 5.0 expansion in a compact Micro-ATX design

SPEED UP YOUR GAMING EXPERIENCE

PCIe 4.0 x4 M.2 SSD support, four USB 3.2 Gen 1 ports, Wi-Fi 6, Bluetooth 5.2, and Gigabit LAN for fast and reliable connectivity.

CUSTOMIZE YOUR GAMING SETUP

Dual 5V 3-pin ARGB headers with Game Center lighting control for synchronized lighting effects across compatible fans, coolers, and memory.

BUILT FOR STABILITY AND RELIABILITY

Six protection technologies, rigorous 200-process testing, an upgraded PCB atomization process, and HDMI 2.0 display support up to 4K 60Hz.

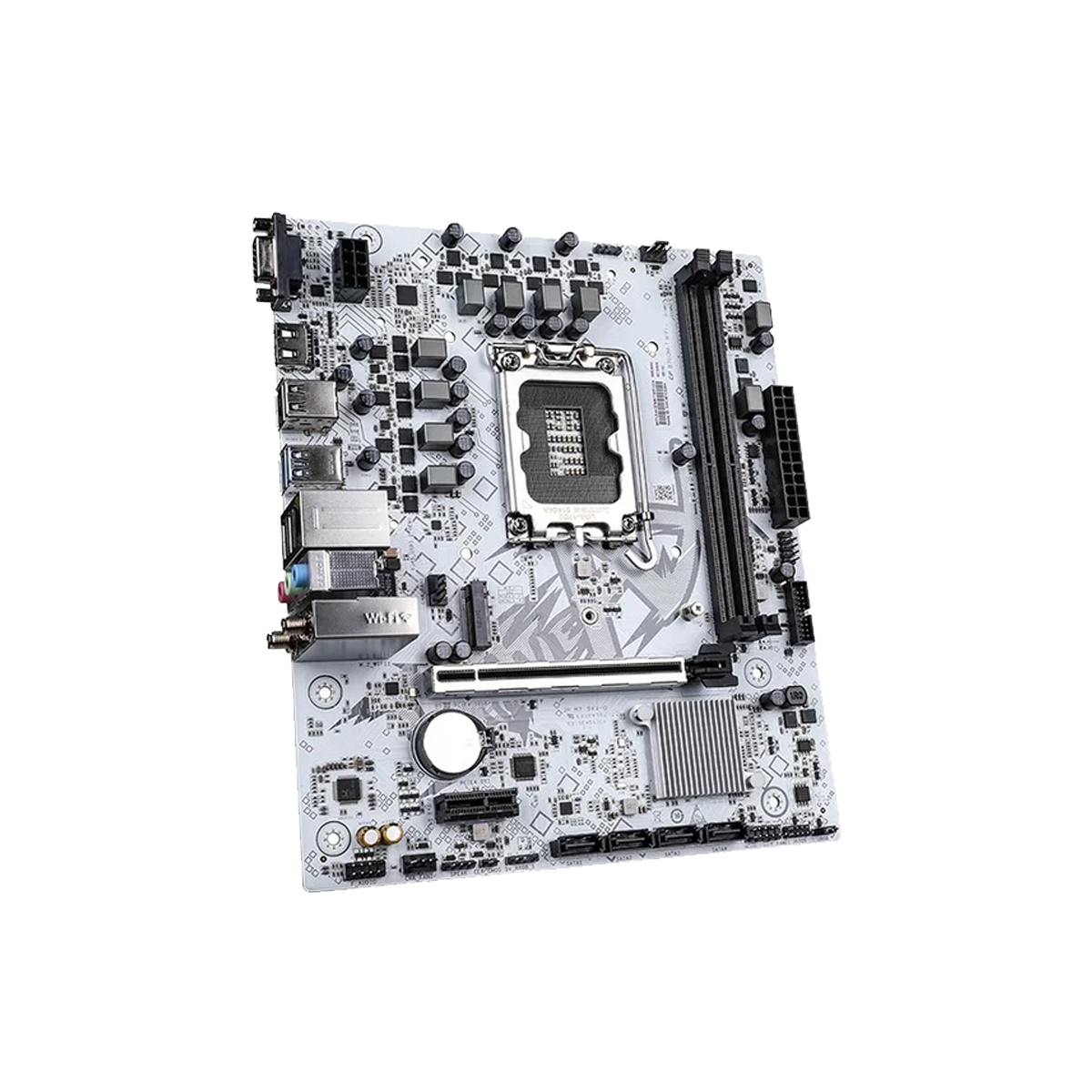

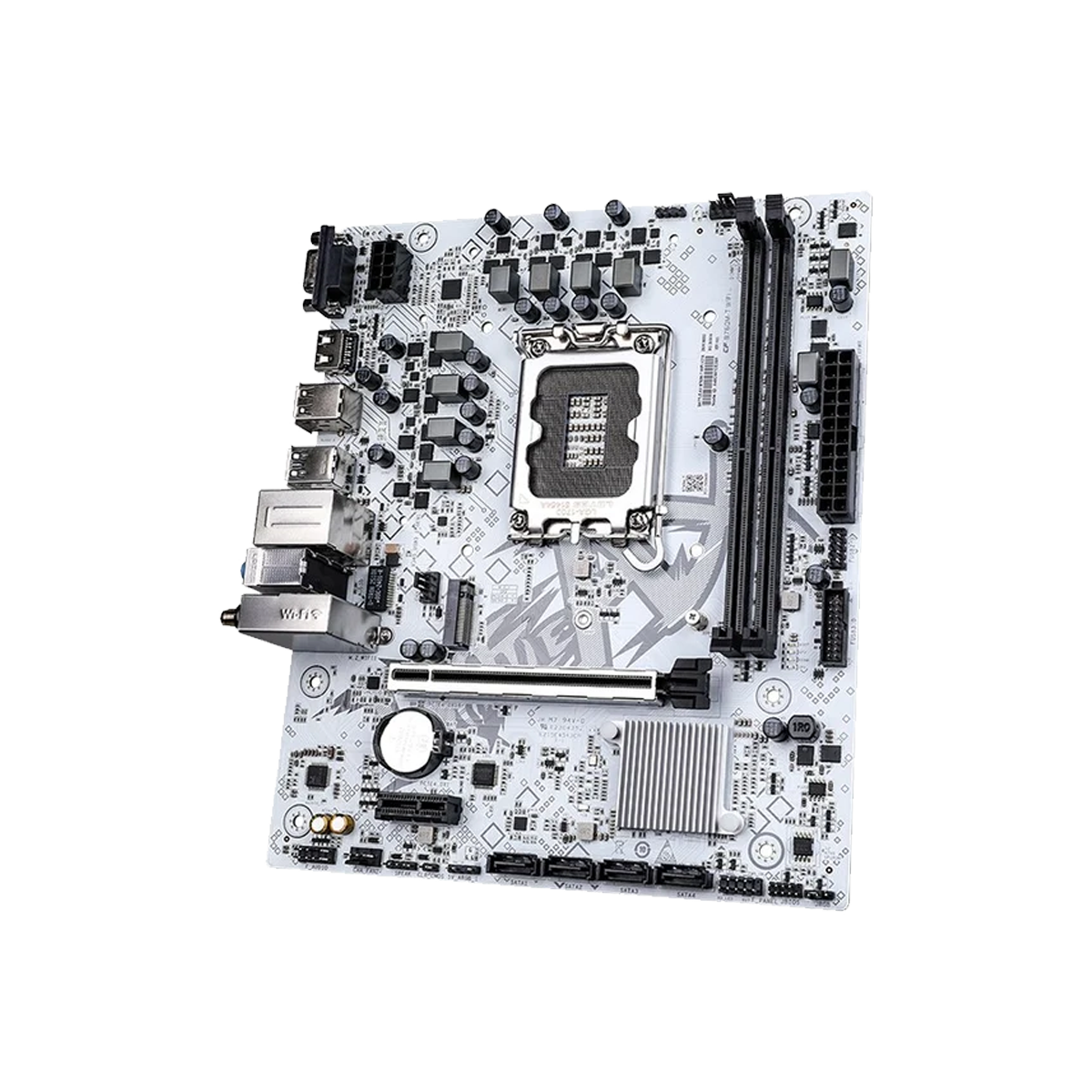

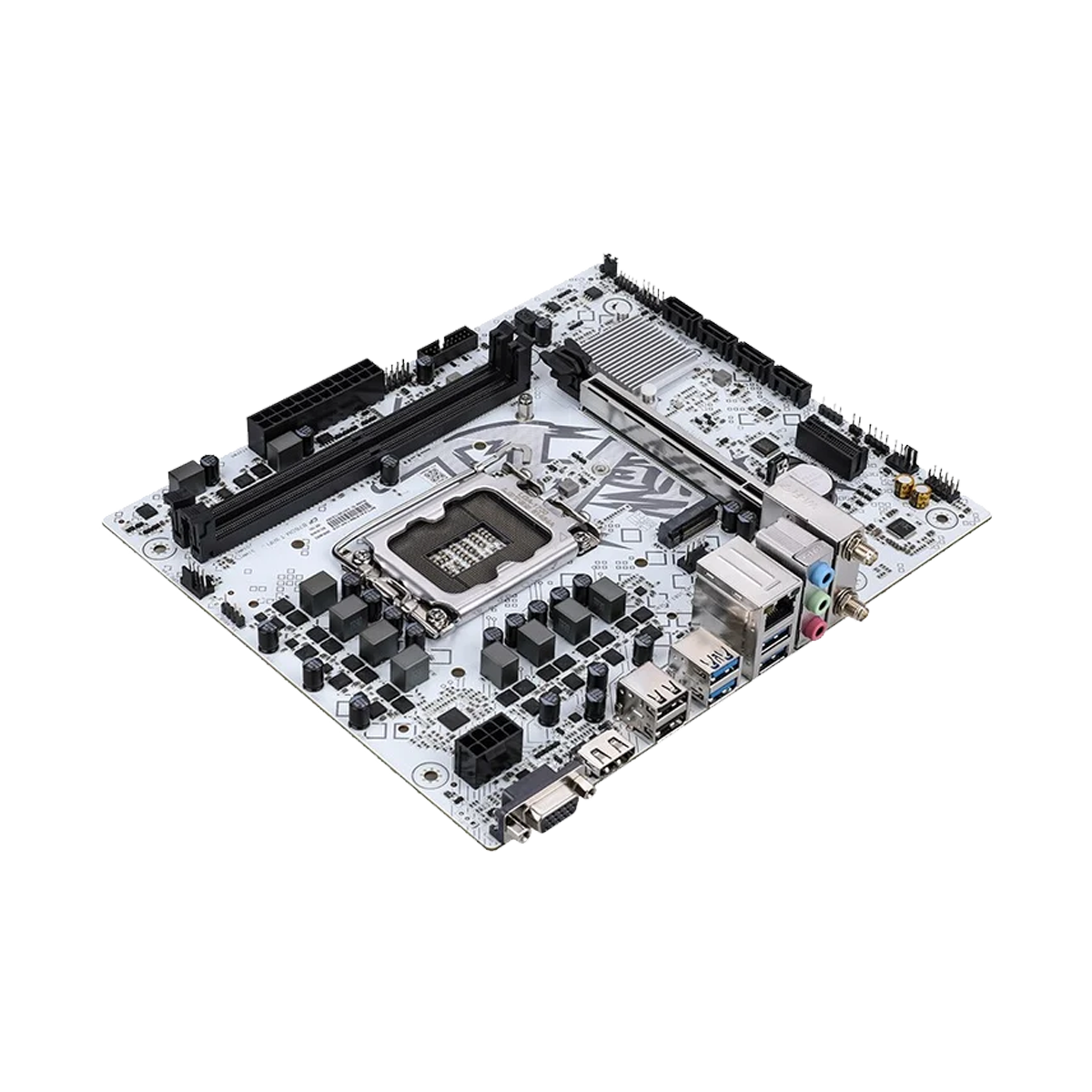

BATTLE-AX B760M-T WIFI V21A
General Information	Model : BATTLE-AX B760M-T WIFI V21A Product Series : BATTLE-AX series Chipset : Intel B760 Processor : Supports 14th / 13th / 12th Generation Intel Core, Pentium and Celeron processors CPU Socket : Intel LGA 1700
Memory	Memory Type : DDR4 Memory Slots : 2 DDR4 DIMM slots Maximum Memory Capacity : 64GB (32GB per slot) Memory Frequency : DDR4-4400(OC) / 4266(OC) / 4000(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133MHz Intel XMP Support : Yes Dual-Channel Memory : Yes
SATA Ports	M.2 Slots : 1 M.2_1 Slot : Supports 2242 / 2280 M.2 SSD (PCIe 4.0 x4, CPU channel) SATA Interfaces : 4 × SATA 6Gb/s SATA RAID Support : RAID 0 / 1 / 5 / 10

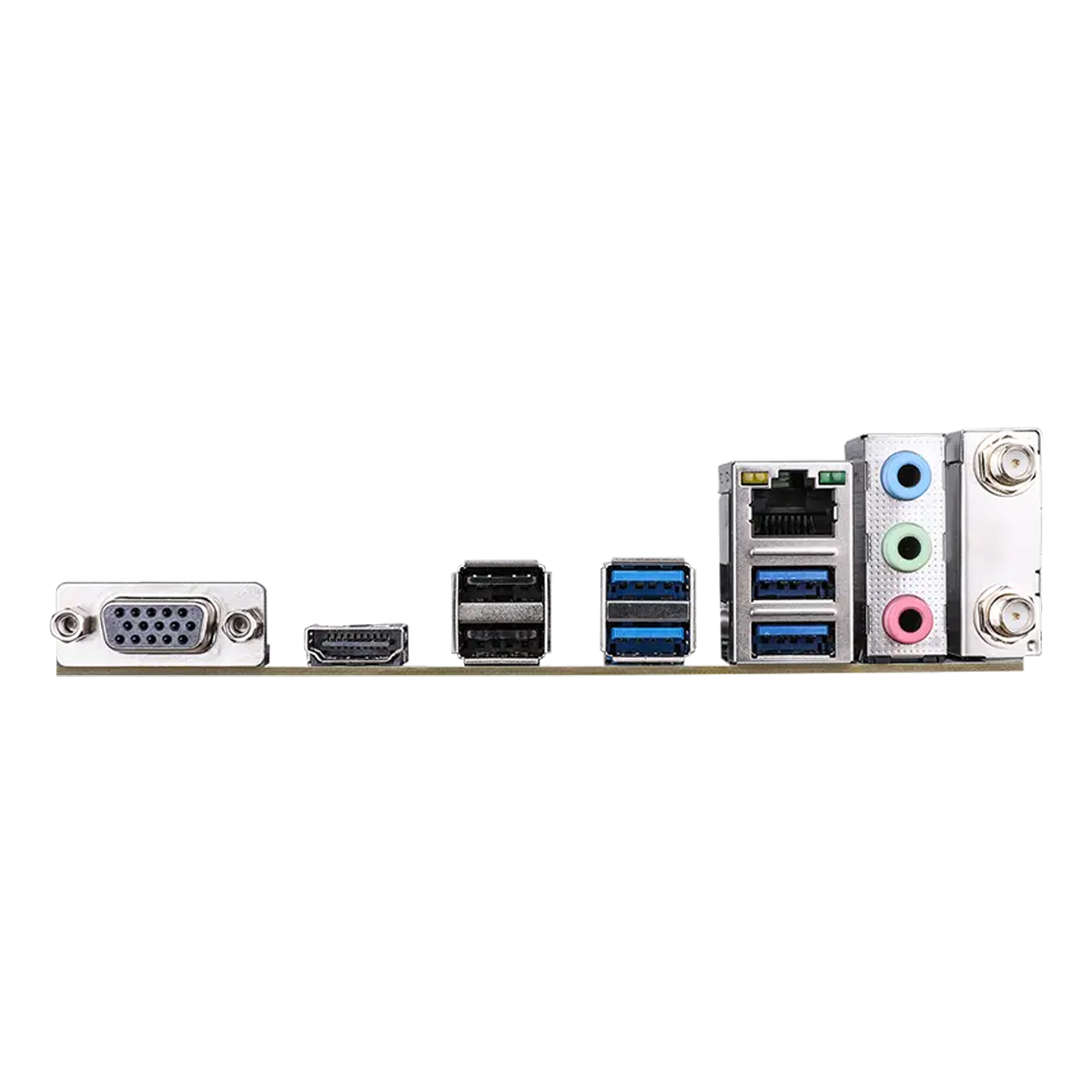

Board I/O	Rear USB 2.0 : 2 ports Rear USB 3.2 Gen 1 Type-A : 4 ports HDMI : 1 × HDMI 2.0 (up to 4K 60Hz) VGA : 1 port Network Interface : 1 × Gigabit Ethernet Wi-Fi Antenna Interfaces : 2 Audio Interfaces : 3 (audio input / audio output / microphone) CPU Fan Header : 1 System Fan Headers : 2 USB 2.0 Header : 1 (supports 2 additional USB 2.0 Type-A ports) USB 3.2 Gen 1 Header : 1 (supports 2 additional USB 3.2 Gen 1 Type-A ports) 5V 3-Pin ARGB Headers : 2 Front Audio Header : 1 Front Panel Header : 1 Speaker Header : 1 Clear CMOS Jumper : 1 BIOS Burner Header : 1 Lighting Control Jumper : 1
Expansion Slots	PCIe 5.0 x16 Slot : 1 PCIe 4.0 x1 Slot : 1
BIOS	BIOS : 128M UEFI Multiple Language Support : Yes
Power Management	ACPI Wake Support : S3 / S4 Network Wake : S5 Wake-up Scheduled Startup : Yes
Hardware Monitor	CPU Fan Speed Control : Yes System Fan Speed Control : Yes CPU Temperature Monitoring : Yes System Temperature Monitoring : Yes Voltage Monitoring : Yes
LAN	Network Controller : Realtek RTL8111H / RTL8111M Gigabit LAN Wireless Network Card : Intel AX101 Wi-Fi 6 Bluetooth : 5.2
Audio	Audio Chip : Realtek ALC897 Audio Channels : Up to 7.1 channels
Configuration	Form Factor : M-ATX Dimensions : 225 × 190 mm
