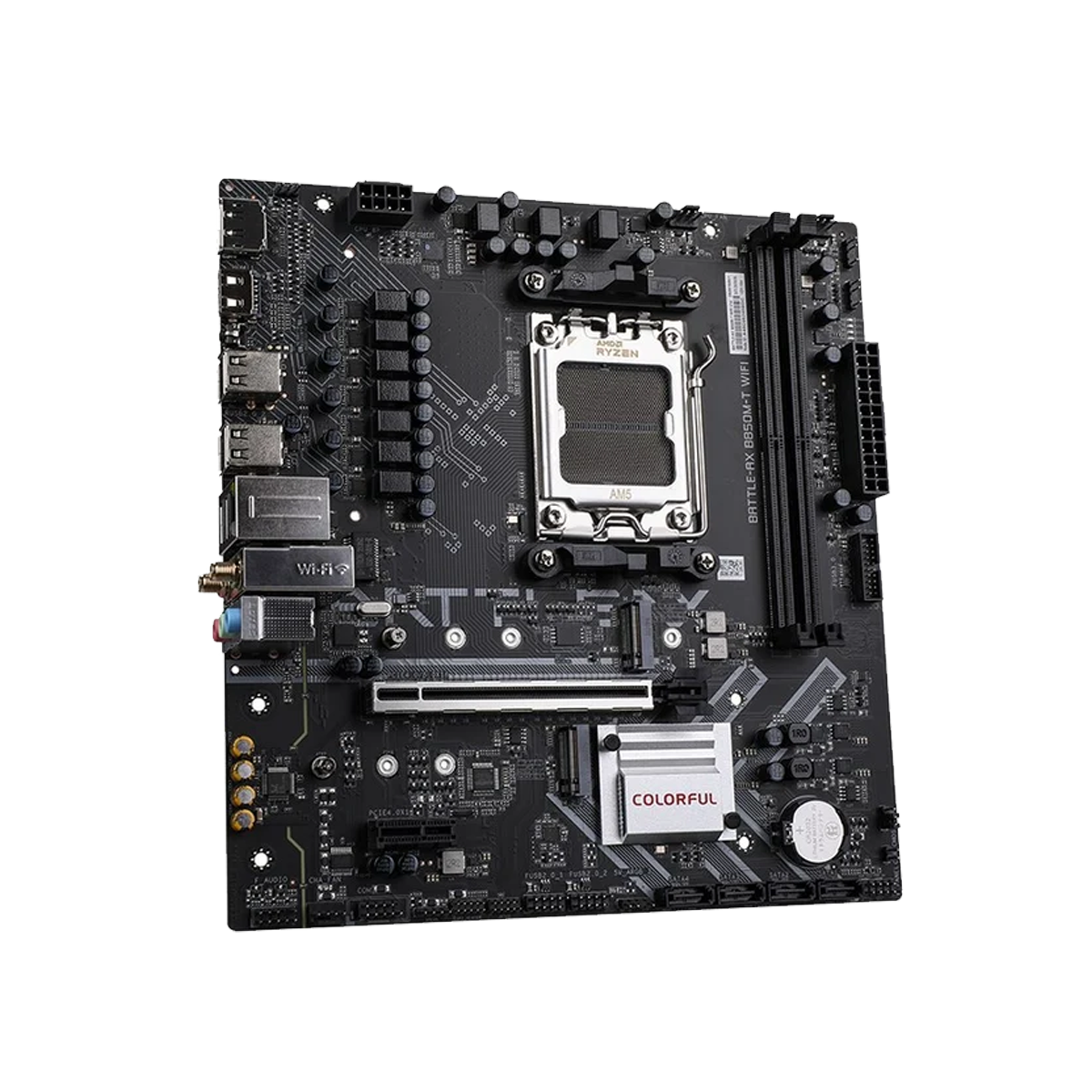

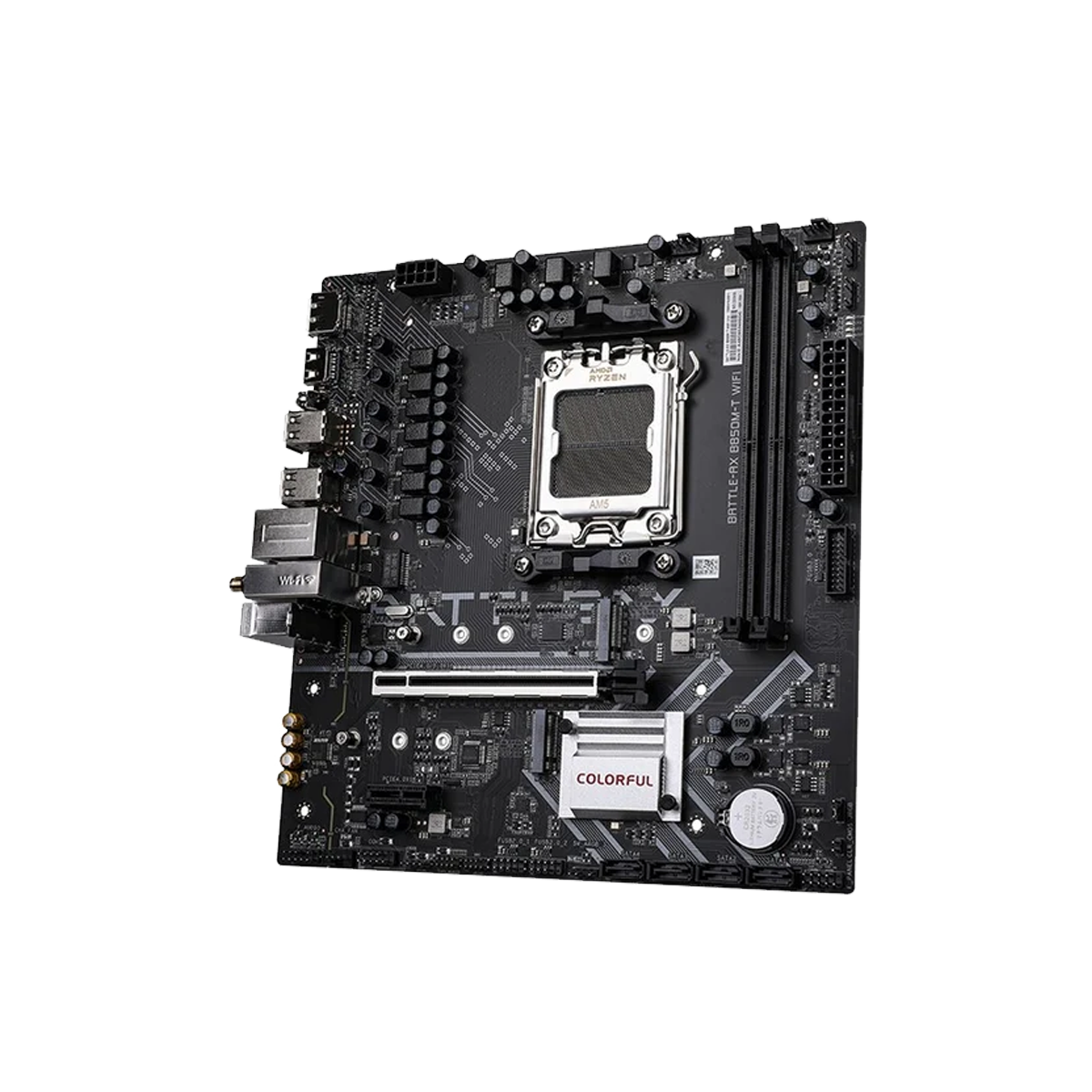

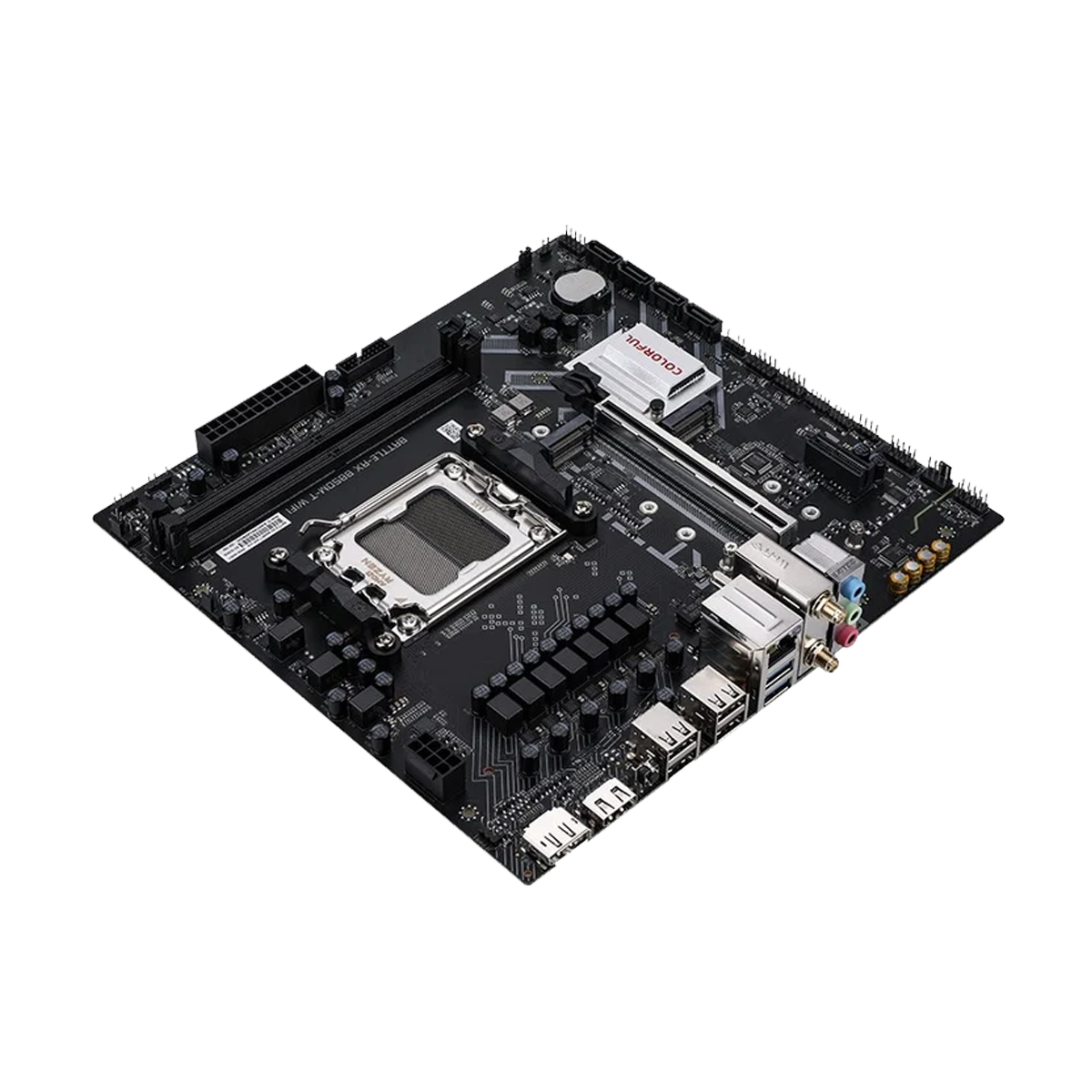

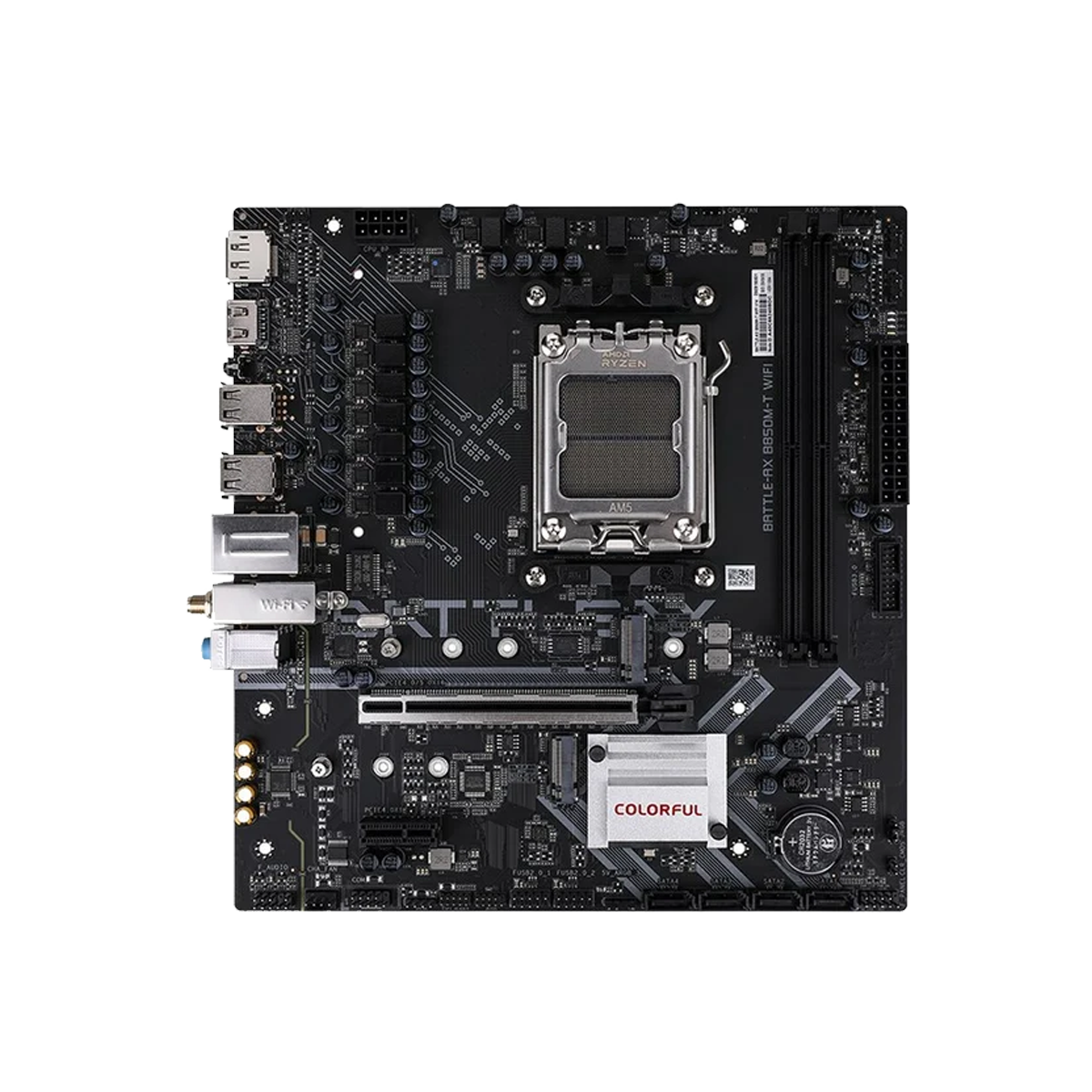

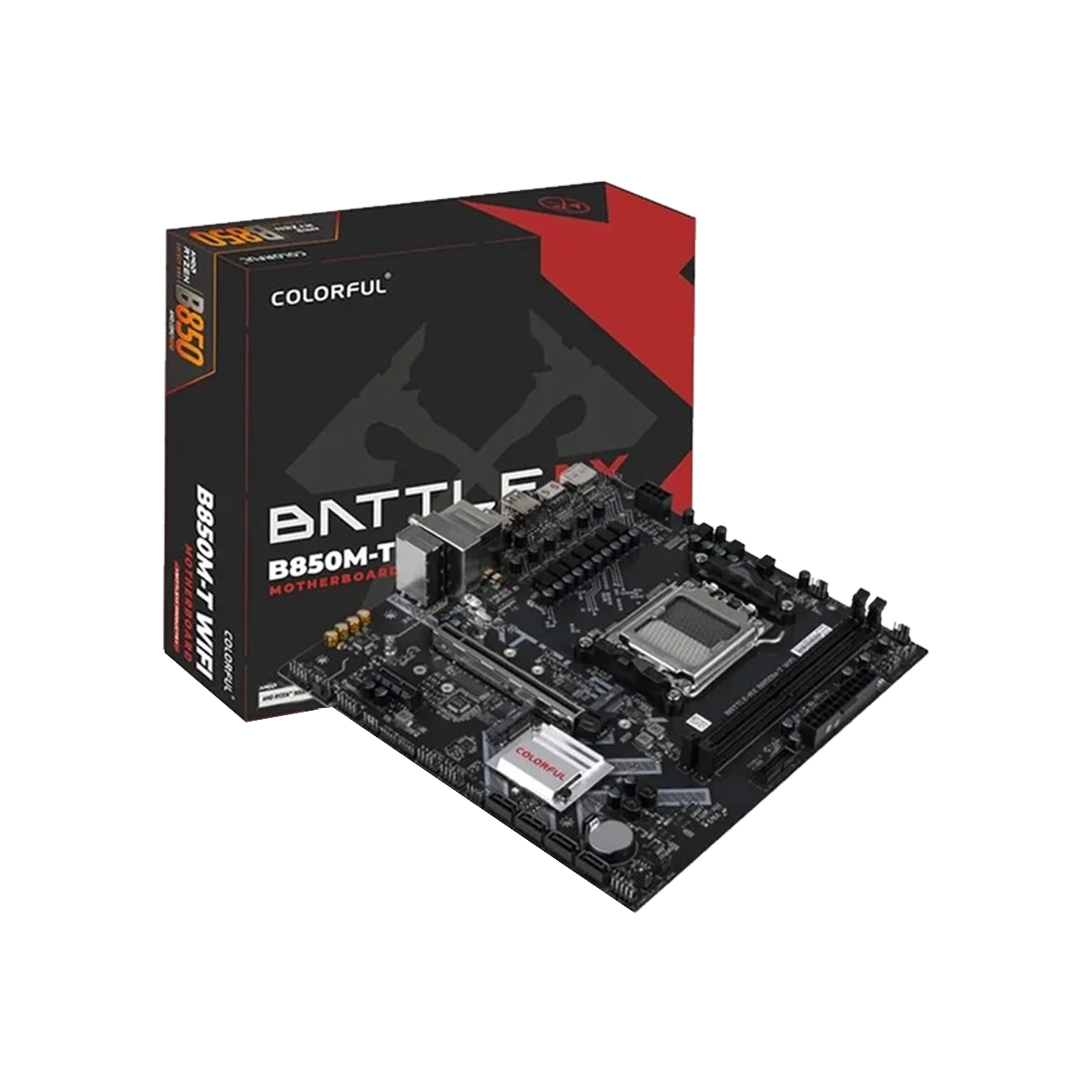

Colorful BATTLE-AX B850M-T WIFI Ver1.4 AMD AM5 DDR5 M-ATX Gaming Motherboard

Colorful BATTLE-AX B850M-T WIFI Ver1.4 AMD AM5 DDR5 M-ATX Gaming Motherboard

العلامة التجارية: Colorful

عادي: 699.00 SAR

أُوكَازيُون: 699.00 SAR
عادي

سعر الوحدة: لكل

السعر يشمل ضريبة القيمة المضافة.

رقم الموديل: 110016221721

أحصل علي خصم %15

استخدم الكود: SAB15

أرسل لي بريدًا إلكترونيًا عندما يكون هذا متاحًا

المميزات الرئيسية:

Provides two M.2 SSD slots.
Equipped with a 2.5G wired network card and Wi-Fi 6E wireless network card, and supports Bluetooth 5.3.
Supports iGame Center lighting control software, allowing synchronized adjustment of the lighting effects of the heatsink, cooling fans, and memory.
I/O backplate supports one-click BIOS upgrade.
Six protection technologies ensure more stable product operation.

تفاصيل
المواصفات التقنية
التنزيلات
التعليمات

NEXT-GEN GAMING POWER

Experience next-generation performance with AMD B850, DDR5 memory support, and PCIe 5.0 expansion in a compact gaming-ready design.

High-Speed Memory & Storage

Support up to 96GB DDR5 memory with overclocking speeds up to 7200MHz. Dual M.2 slots and four SATA 6Gb/s ports provide flexible, high-speed storage options.

Advanced Connectivity

Stay connected with 2.5G LAN, Wi-Fi 6E, and Bluetooth 5.3. Enjoy versatile connectivity with HDMI, DisplayPort, USB ports, and 7.1-channel audio support.

Smart Cooling, Protection & Control

Six protection technologies support dependable operation. Monitor system temperatures and fan speeds, synchronize RGB lighting through iGame Center, and upgrade BIOS easily with the dedicated rear I/O button.

BATTLE-AX B850M-T WIFI V14 Ver1.4
General Information	Model : BATTLE-AX B850M-T WIFI V14 Ver1.4 Product Series : BATTLE-AX series Chipset : AMD B850 Processor : Supports AMD Ryzen 7000 / 8000 / 9000 Series Processors CPU Socket : AMD AM5
Memory	Memory Type : DDR5 Memory Slots : 2 DDR5 DIMM slots Maximum Memory Capacity : 96GB (48GB per slot) Memory Frequency : DDR5-7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800MHz AMD EXPO Support : Yes Intel XMP Support : Yes Dual-Channel Memory : Yes
SATA Ports	M.2 Slots : 2 M.2_1 Slot : Supports 2242 / 2260 / 2280 M.2 SSD (PCIe 5.0 / 4.0 x4, CPU channel) M.2_2 Slot : Supports 2242 / 2260 / 2280 M.2 SSD (PCIe 4.0 x4, PCH channel) SATA Interfaces : 4 × SATA 6Gb/s RAID Support : Supports RAID with SATA or M.2 NVMe drives Ryzen 9000 RAID : RAID 0 / 1 / 5 / 10 Ryzen 8000 RAID : RAID 0 / 1 Ryzen 7000 RAID : RAID 0 / 1 / 10 PCIe 5.0 Support : Depends on the processor used

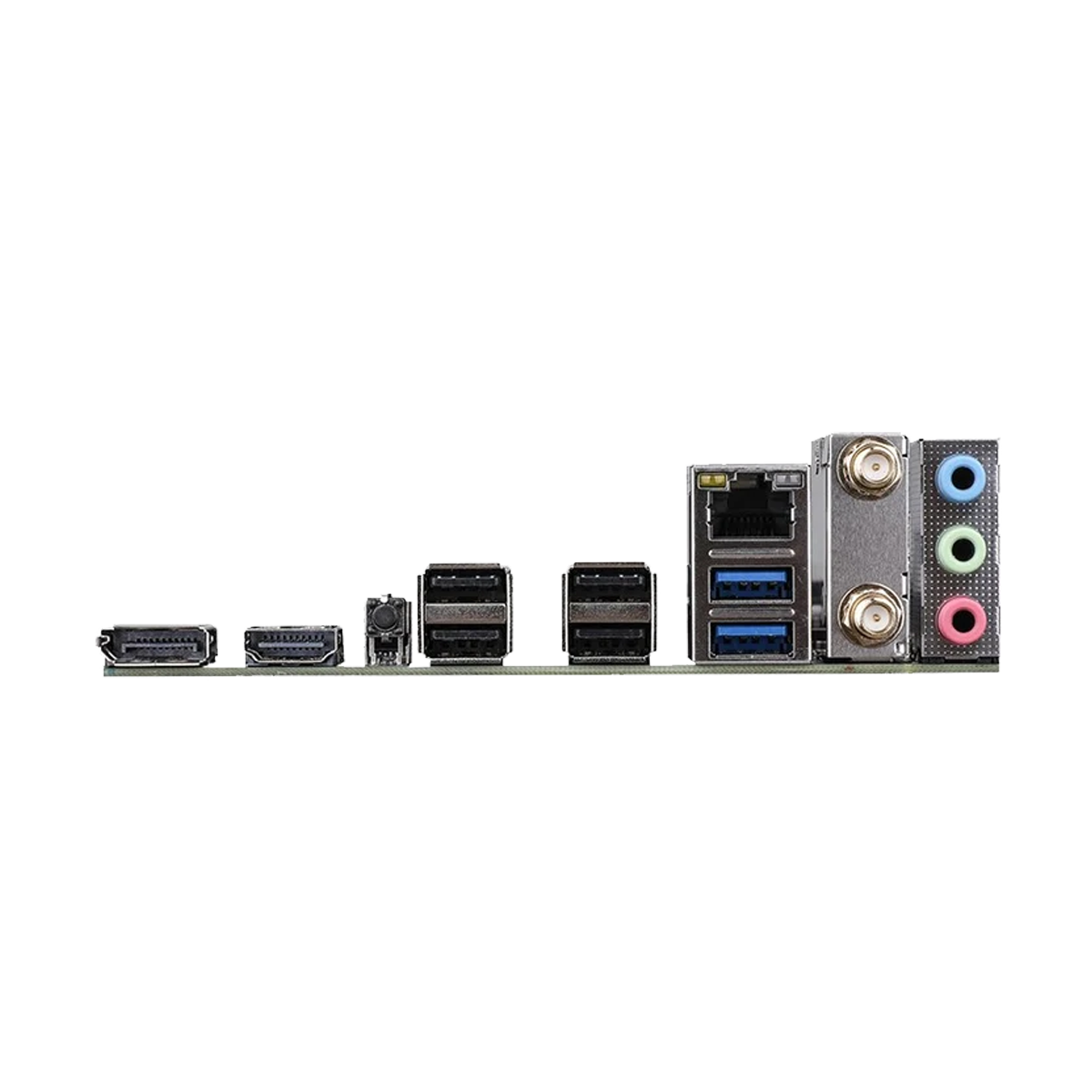

Board I/O	Rear USB 2.0 : 4 ports Rear USB 3.2 Gen 1 Type-A : 2 ports (5Gbps) DisplayPort : 1 × DP 1.2 (up to 4K 60Hz) HDMI : 1 × HDMI 2.0 (up to 4K 60Hz) Network Interface : 1 × 2.5G Ethernet Wi-Fi Antenna Interfaces : 2 (Wi-Fi 6E) BIOS Update Button : 1 Audio Interfaces : 3 (audio input / audio output / microphone) USB 2.0 Headers : 2 (support 4 additional USB 2.0 Type-A ports) USB 3.2 Gen 1 Header : 1 (supports 2 additional Type-A ports, 5Gbps) CPU Fan Header : 1 System Fan Header : 1 Water Cooling Pump Header : 1 5V 3-Pin ARGB Headers : 3 Front Audio Header : 1 Front Panel Header : 1 Speaker Header : 1 COM Port Header : 1 Clear CMOS Jumper : 1 BIOS Burner Header : 1 RGB Lighting Control Jumper : 1 POST Card Header : 1
Expansion Slots	PCIe 5.0 x16 Slot : 1 PCIe 4.0 x1 Slot : 1
BIOS	BIOS : 256M UEFI Multiple Language Support : Yes
Power Management	ACPI Wake Support : S3 / S4 Network Wake : S5 Wake-up USB Wake-up : Yes Scheduled Startup : Yes Call Startup : Supported
Hardware Monitor	CPU Fan Speed Control : Yes System Fan Speed Control : Yes CPU Temperature Monitoring : Yes System Temperature Monitoring : Yes Voltage Monitoring : Yes
LAN	Network Controller : Realtek RTL8125BG 2.5Gbit LAN Wireless Network Card : MediaTek MT7902-D Wi-Fi 6E Bluetooth : 5.3
Audio	Audio Chip : Realtek ALC897 Audio Channels : Up to 7.1 channels
Configuration	Form Factor : M-ATX Dimensions : 230 × 220 mm
