Colorful BATTLE-AX H610M-E WIFI V21A DDR4 M-ATX Gaming Motherboard

Colorful BATTLE-AX H610M-E WIFI V21A DDR4 M-ATX Gaming Motherboard

العلامة التجارية: Colorful

عادي: 349.00 SAR

أُوكَازيُون: 349.00 SAR
عادي

سعر الوحدة: لكل

السعر يشمل ضريبة القيمة المضافة.

رقم الموديل: 110001217602

أحصل علي خصم %15

استخدم الكود: SAB15

أرسل لي بريدًا إلكترونيًا عندما يكون هذا متاحًا

المميزات الرئيسية:

Intel H610 chipset
Supports dual channel DDR4-3200MHz memory
Provide 1 PCIe 3.0 x4 M.2 SSD slot
Equipped with HDMI+VGA display interface
Equipped with Realtek 8111H Gigabit wired network card and AX101 Wi-Fi 6 wireless network card, supporting Bluetooth 5.2
Equipped with Realtek ALC897 sound card chip, supporting up to 5.1 channels
Rear: 2 USB 3.2 Gen 1 Type-A ports, 4 USB 2.0 ports
Front end: 2 USB 3.2 Gen 1 Type-A interfaces, 2 USB 2.0 interfaces

تفاصيل
المواصفات التقنية
التنزيلات
التعليمات

BUILT FOR YOUR NEXT GAMING BUILD

Colorful BATTLE-AX H610M-E WIFI V21A Support for 12th, 13th and 14th Gen Intel® processors, DDR4 memory up to 3200MHz, and a compact Micro-ATX design.

FAST STORAGE. FLEXIBLE EXPANSION.

Dual-channel DDR4 memory up to 64GB, a PCIe 3.0 x4 M.2 SSD slot, four SATA 6Gb/s ports, and PCIe x16 expansion for your gaming setup.

STAY CONNECTED. PLAY WITHOUT LIMITS.

Wi-Fi 6, Bluetooth 5.2, and Gigabit Ethernet keep you connected. HDMI 2.0 supports up to 4K at 60Hz, with VGA for added display flexibility.

IMMERSIVE AUDIO. COMPLETE CONTROL.

Realtek ALC897 audio, up to 7.1-channel support, 6 rear USB ports, expandable front USB connectivity, and RGB/ARGB headers bring your setup together.

BATTLE-AX H610M-E WIFI V21A
General Information	Model : BATTLE-AX H610M-E WIFI V21A Product Series : BATTLE-AX series Chipset : Intel H610 Processor : Supports 14th / 13th / 12th Generation Intel Core, Pentium and Celeron Processors CPU Socket : Intel LGA 1700
Memory	Memory Type : DDR4 Memory Slots : 2 DDR4 DIMM slots Maximum Memory Capacity : 64GB (32GB per slot) Memory Frequency : DDR4-3200 / 2933 / 2666 / 2400MHz Dual-Channel Memory : Yes
SATA Ports	M.2 Slots : 1 M.2 Slot : Supports 2242 / 2280 M.2 SSD (PCIe 3.0 x4, PCH channel) SATA Interfaces : 4 × SATA 6Gb/s

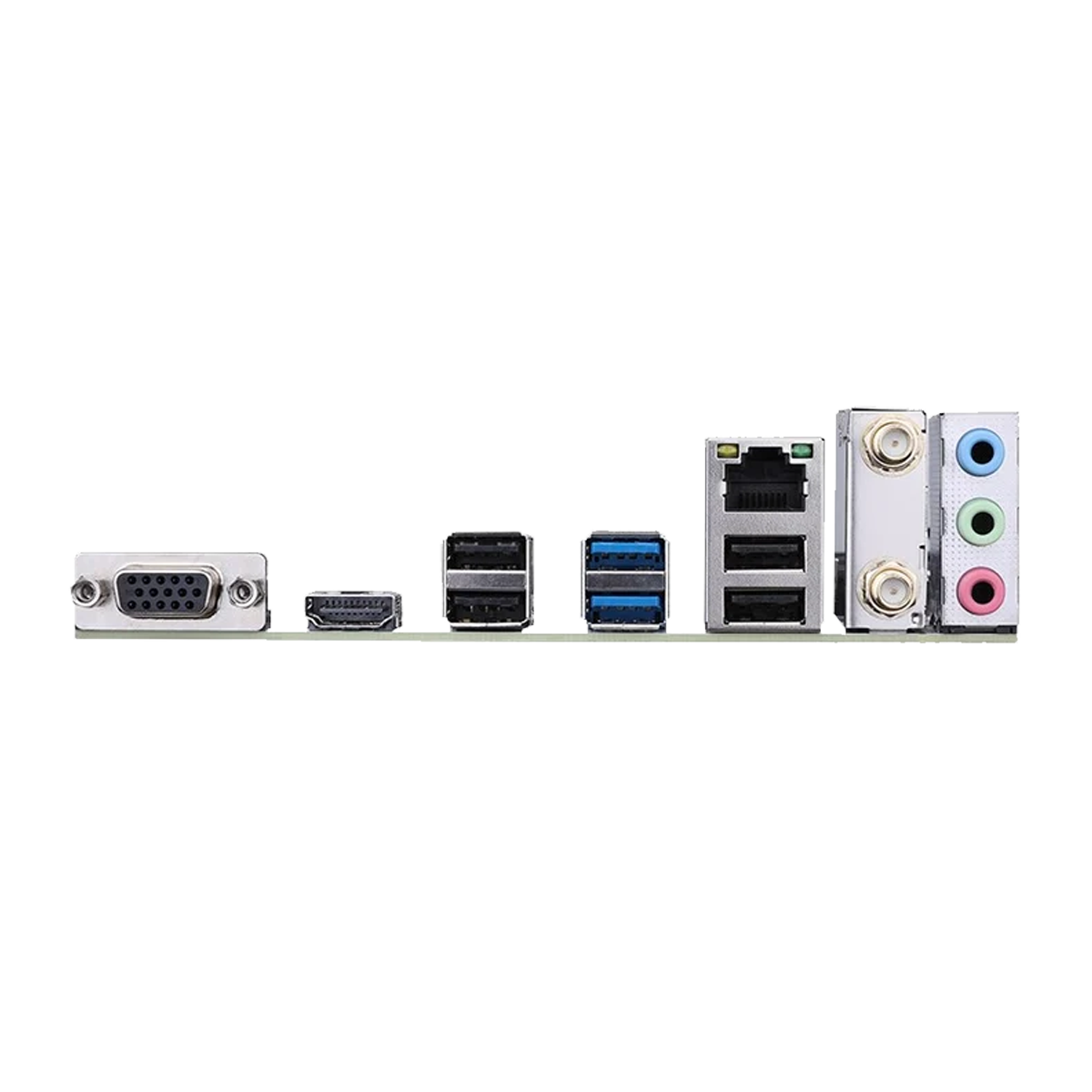

Board I/O	Rear USB 2.0 : 4 ports Rear USB 3.2 Gen 1 Type-A : 2 ports HDMI : 1 × HDMI 2.0 (up to 4K 60Hz) VGA : 1 port Network Interface : 1 × Gigabit Ethernet Wi-Fi Antenna Interfaces : 2 (Wi-Fi 6) Audio Interfaces : 3 (audio input / audio output / microphone) CPU Fan Header : 1 System Fan Headers : 2 USB 2.0 Header : 1 (supports 2 additional USB 2.0 Type-A ports) USB 3.2 Gen 1 Header : 1 (supports 2 additional USB 3.2 Gen 1 Type-A ports) 5V 3-Pin ARGB Headers : 2 12V 4-Pin RGB Header : 1 Front Audio Header : 1 Front Panel Header : 1 Speaker Header : 1 Clear CMOS Jumper : 1 BIOS Burner Header : 1
Expansion Slots	PCIe 4.0 x16 Slot : 1 PCIe 3.0 x1 Slot : 1
BIOS	BIOS : 128M UEFI Multiple Language Support : Yes
Power Management	ACPI Wake Support : S3 / S4 Network Wake : S5 Wake-up USB Wake-up : Yes Scheduled Startup : Yes Call Startup : Supported
Hardware Monitor	CPU Fan Speed Control : Yes System Fan Speed Control : Yes CPU Temperature Monitoring : Yes System Temperature Monitoring : Yes Voltage Monitoring : Yes
LAN	Network Controller : Realtek RTL8111H Gigabit Ethernet Wireless Network Card : Intel AX101 Wi-Fi 6 Bluetooth : 5.2
Audio	Audio Chip : Realtek ALC897 Audio Channels : Up to 7.1 channels
Configuration	Form Factor : M-ATX Dimensions : 225 × 185 mm
