Colorful H810M-T V20 DDR5 M-ATX Gaming Motherboard

Colorful H810M-T V20 DDR5 M-ATX Gaming Motherboard

العلامة التجارية: Colorful

عادي: 549.00 SAR

أُوكَازيُون: 549.00 SAR
عادي

سعر الوحدة: لكل

السعر يشمل ضريبة القيمة المضافة.

رقم الموديل: 110016221727

أحصل علي خصم %15

استخدم الكود: SAB15

أرسل لي بريدًا إلكترونيًا عندما يكون هذا متاحًا

المميزات الرئيسية:

Intel H810 chipset
Supports dual-channel DDR5-6400MHz memory
Provides 2 PCIe M.2 SSD slots
Includes HDMI + DP display interfaces
Equipped with Intel I219-V Gigabit Ethernet controller
Equipped with Realtek ALC897 sound chip, supporting up to 7.1 channels
Rear: 2 USB 3.2 Gen 1 Type-A ports, 4 USB 2.0 ports
Front: 2 USB 3.2 Gen 1 Type-A ports, 2 USB 2.0 ports

تفاصيل
المواصفات التقنية
التنزيلات
التعليمات

BUILT FOR YOUR NEXT GAMING BUILD

Colorful H810M-T V20 DDR5 M-ATX Gaming Motherboard Powered by the Intel H810 chipset, featuring Intel® Core™ Ultra processor support, DDR5 memory up to 96GB, and PCIe 5.0 graphics expansion in a compact Micro-ATX design.

HIGH-SPEED STORAGE & CONNECTIVITY

Featuring dual PCIe 4.0 M.2 SSD slots, Gigabit Ethernet, and multiple USB 3.2 Gen 1 and USB 2.0 ports for responsive storage and everyday connectivity.

IMMERSIVE VISUALS & RGB LIGHTING

Enjoy HDMI 2.0 and DisplayPort 1.2 outputs supporting up to 4K 60Hz, dual 5V ARGB headers, a 12V RGB header, and customizable lighting for a personalized setup.

RELIABLE PERFORMANCE & CLEAR AUDIO

Designed with a PCIe 5.0 x16 graphics slot, Realtek ALC897 audio supporting up to 7.1 channels, and onboard fan and temperature monitoring for dependable system management.

H810M-T V20
General Information	Model : H810M-T V20 Product Series : Colorful series Chipset : Intel H810 Processor : Supports Intel Core Ultra Processors CPU Socket : Intel LGA 1851
Memory	Memory Type : DDR5 Memory Slots : 2 DDR5 DIMM slots Maximum Memory Capacity : 96GB (48GB per slot) Memory Frequency : DDR5-6400 / 6200 / 6000 / 5800 / 5600 / 5200 / 4800MHz Intel XMP Support : Yes Dual-Channel Memory : Yes
SATA Ports	M.2 Slots : 2 M.2_1 Slot : Supports 2242 / 2280 M.2 SSD (PCIe 4.0 x4, chipset channel) M.2_2 Slot : Supports 2242 / 2280 M.2 SSD (PCIe 4.0 x2, chipset channel) SATA Interfaces : 4 × SATA 6Gb/s

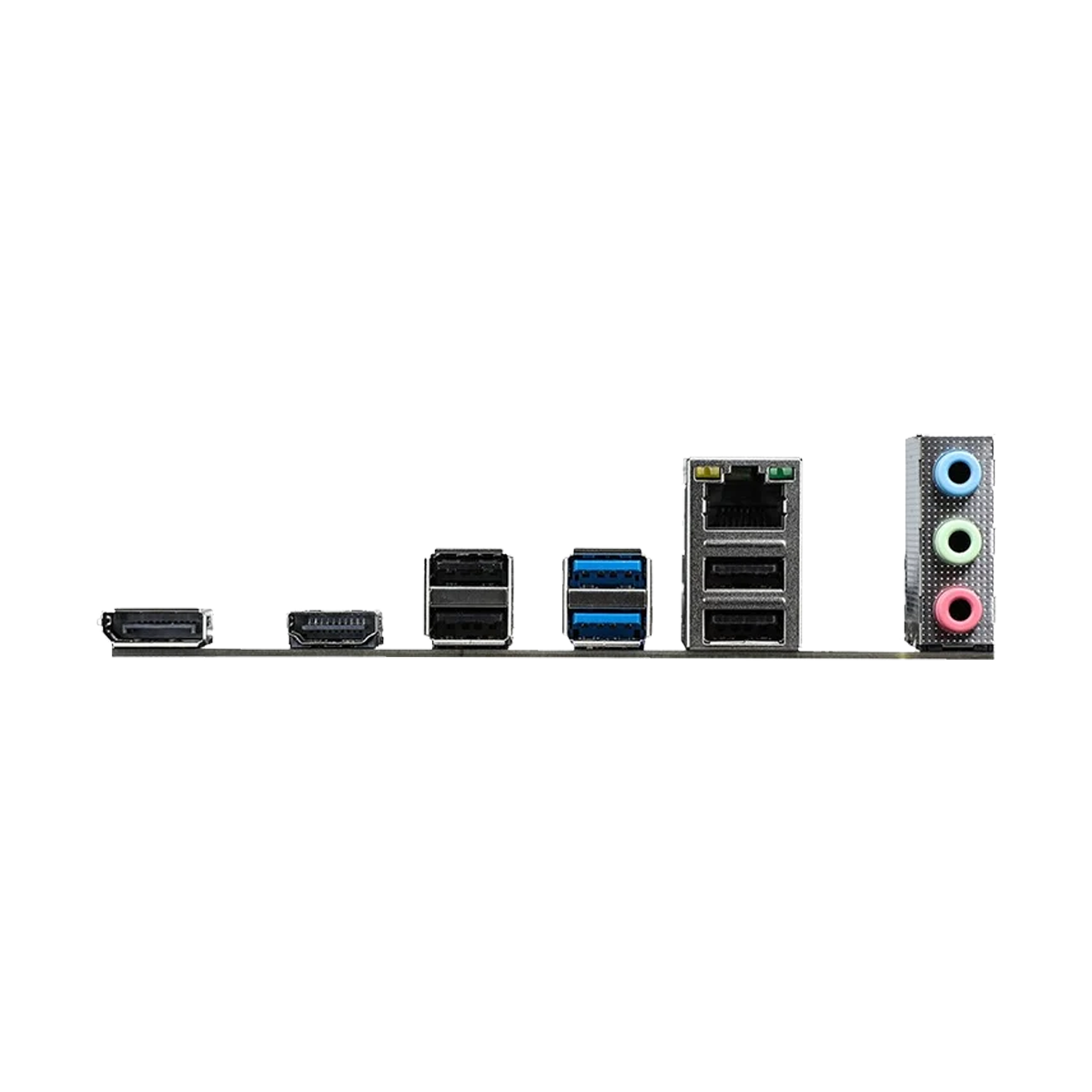

Board I/O	Rear USB 2.0 : 4 ports Rear USB 3.2 Gen 1 Type-A : 2 ports (5Gbps) DisplayPort : 1 × DP 1.2 (up to 4K 60Hz) HDMI : 1 × HDMI 2.0 (up to 4K 60Hz) Network Interface : 1 × Gigabit Ethernet Audio Interfaces : 3 USB 2.0 Header : 1 (supports 2 additional USB 2.0 Type-A ports) USB 3.2 Gen 1 Header : 1 (supports 2 additional Type-A ports, 5Gbps) CPU Fan Header : 1 System Fan Headers : 2 5V 3-Pin ARGB Headers : 2 12V 4-Pin RGB Header : 1 Front Audio Header : 1 Front Panel Header : 1 Speaker Header : 1 BIOS Burner Header : 1 Clear CMOS Jumper : 1
Expansion Slots	PCIe 5.0 x16 Slot : 1 PCIe 4.0 x1 Slot : 1
BIOS	BIOS : 256M UEFI Multiple Language Support : Yes
Power Management	ACPI Wake Support : S3 / S4 Network Wake : S5 Wake-up USB Wake-up : Yes Scheduled Startup : Yes Call Startup : Supported
Hardware Monitor	CPU Fan Speed Control : Yes System Fan Speed Control : Yes CPU Temperature Monitoring : Yes System Temperature Monitoring : Yes Voltage Monitoring : Yes
LAN	Network Controller : Intel I219-V Gigabit Ethernet
Audio	Audio Chip : Realtek ALC897 Audio Channels : Up to 7.1 channels
Configuration	Form Factor : M-ATX Dimensions : 225 × 210 mm
