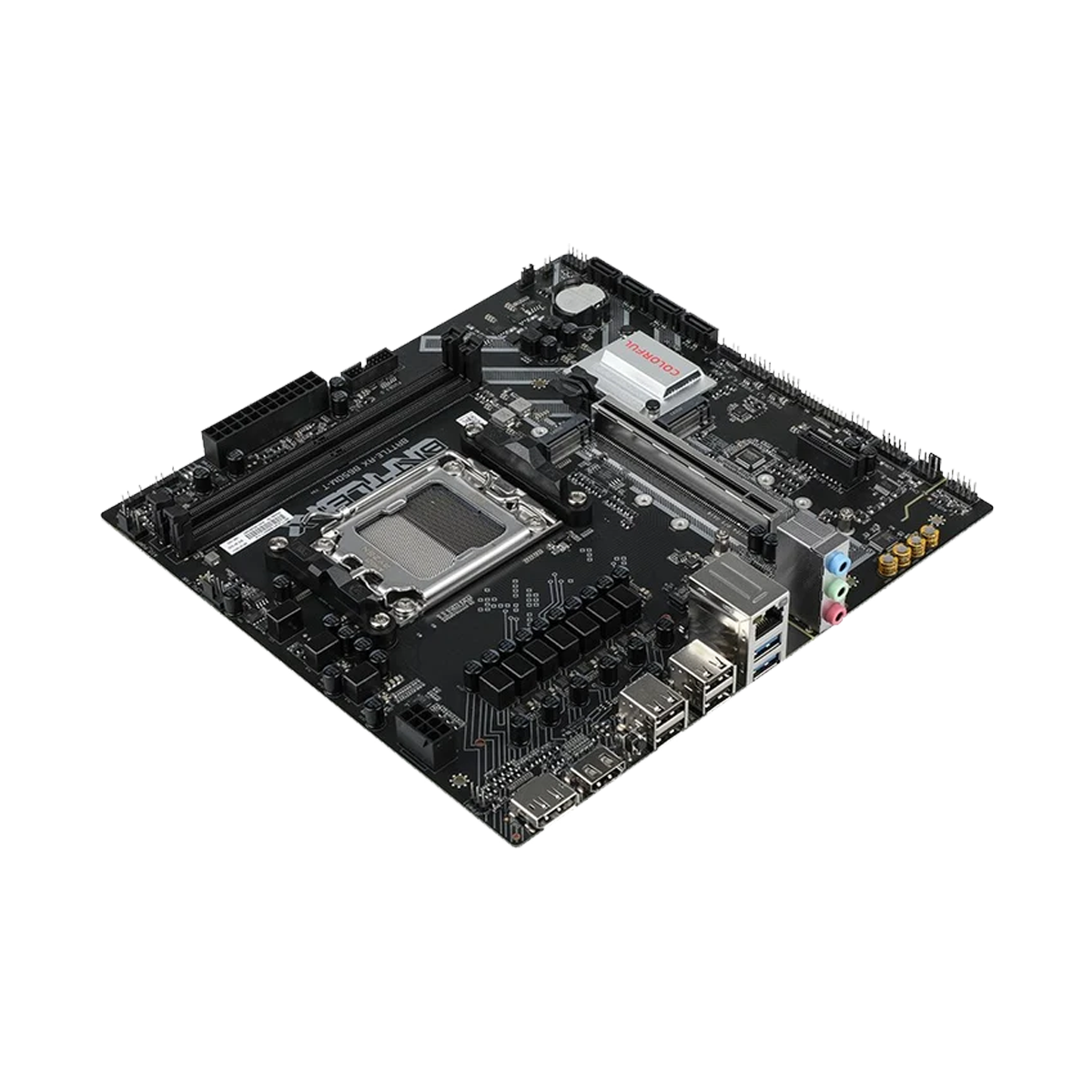

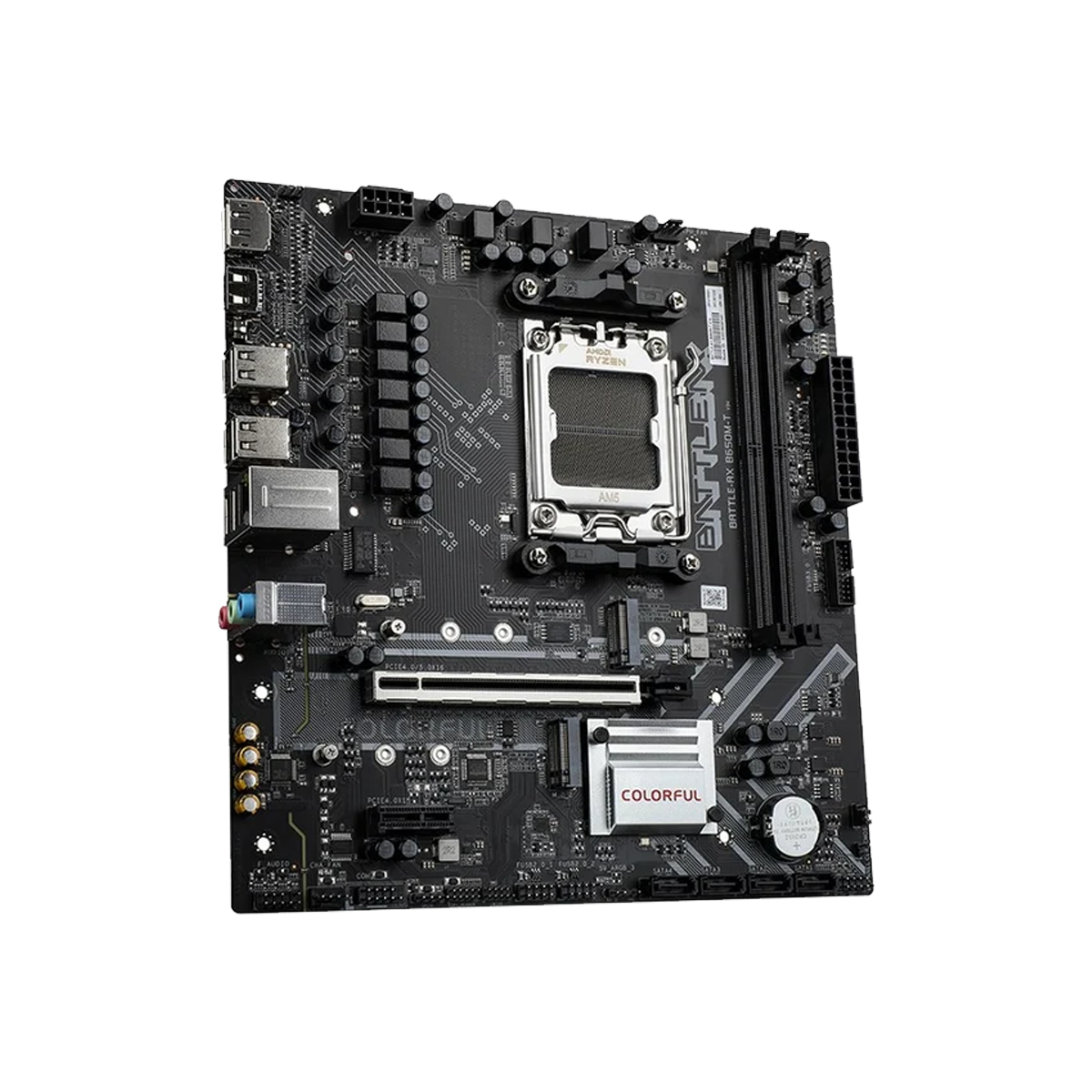

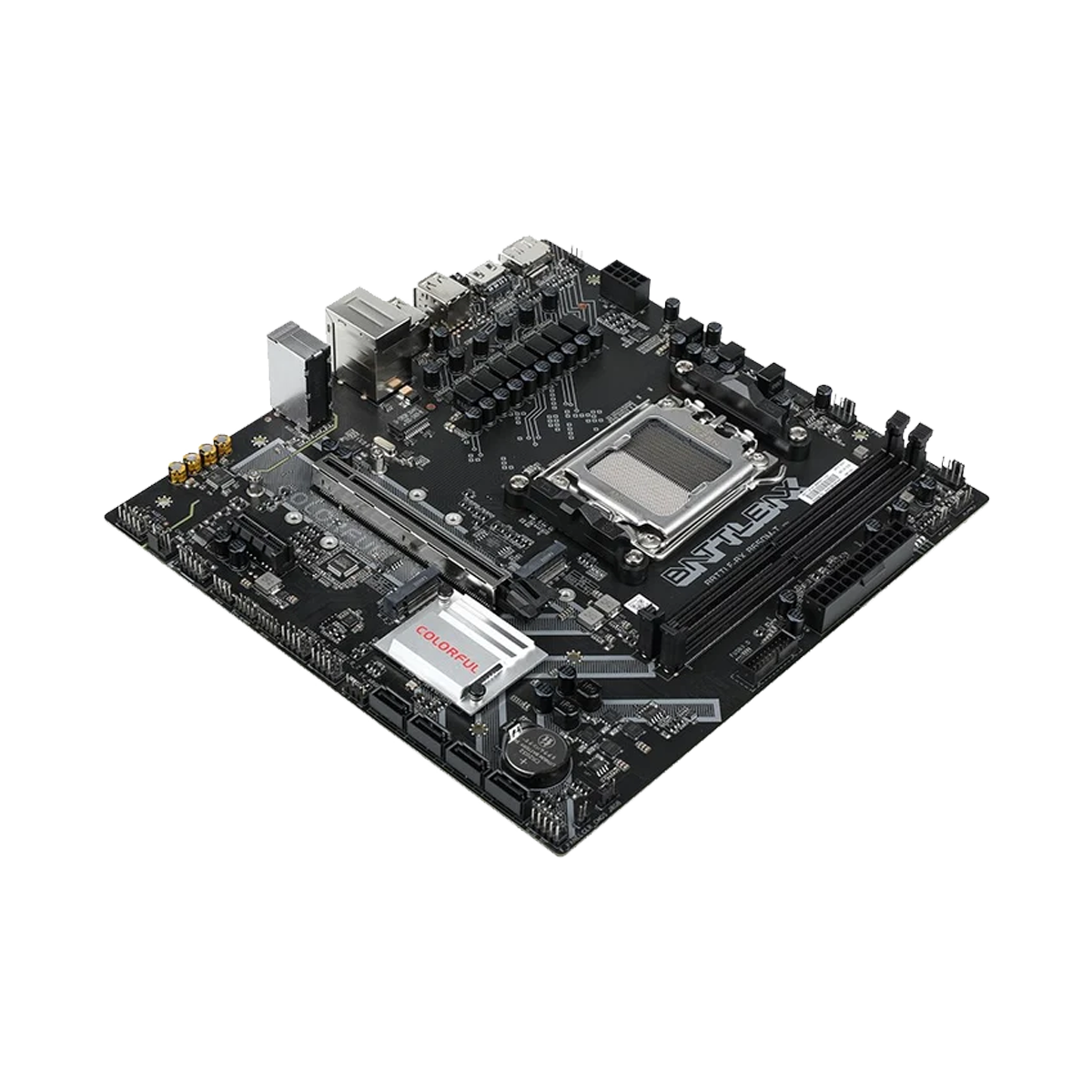

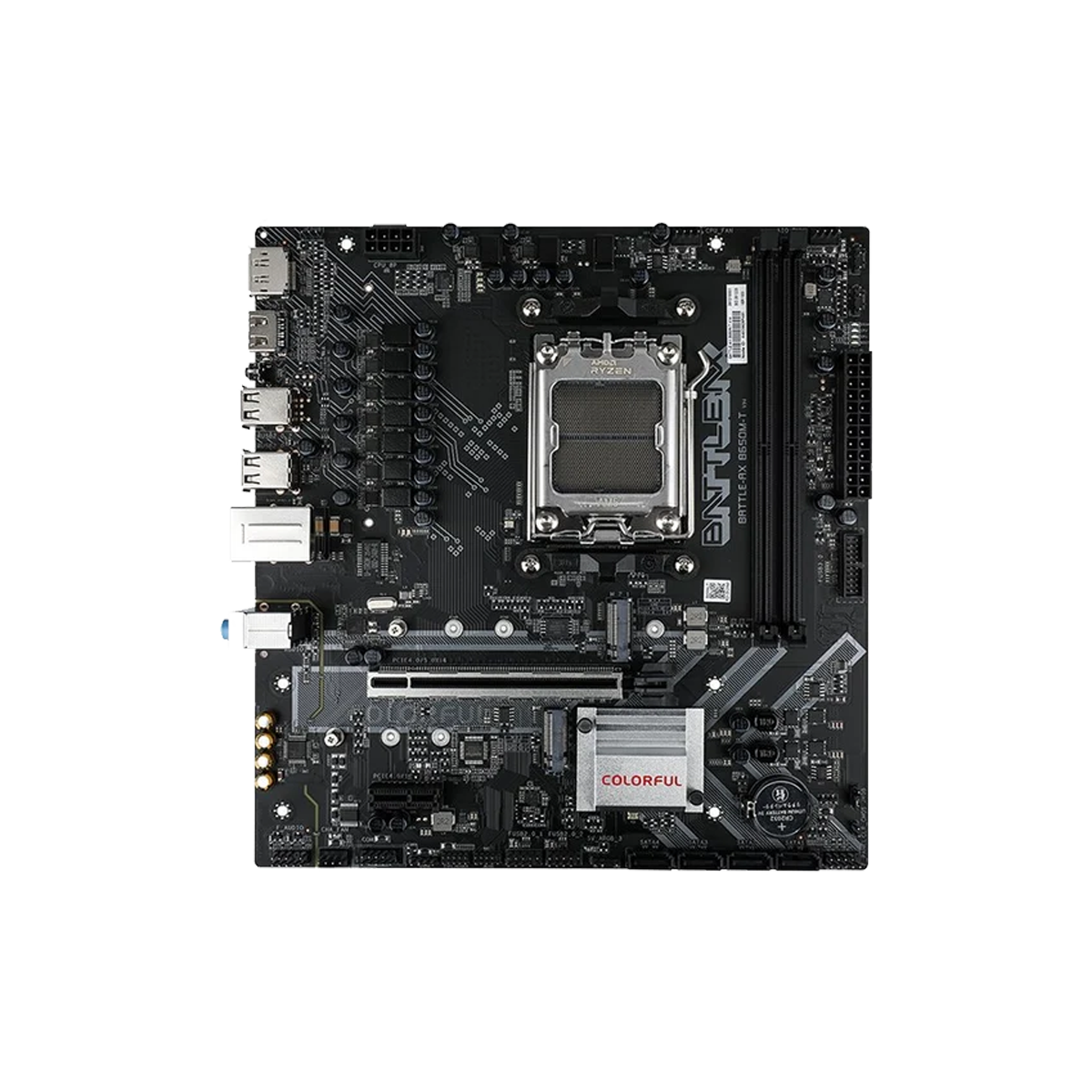

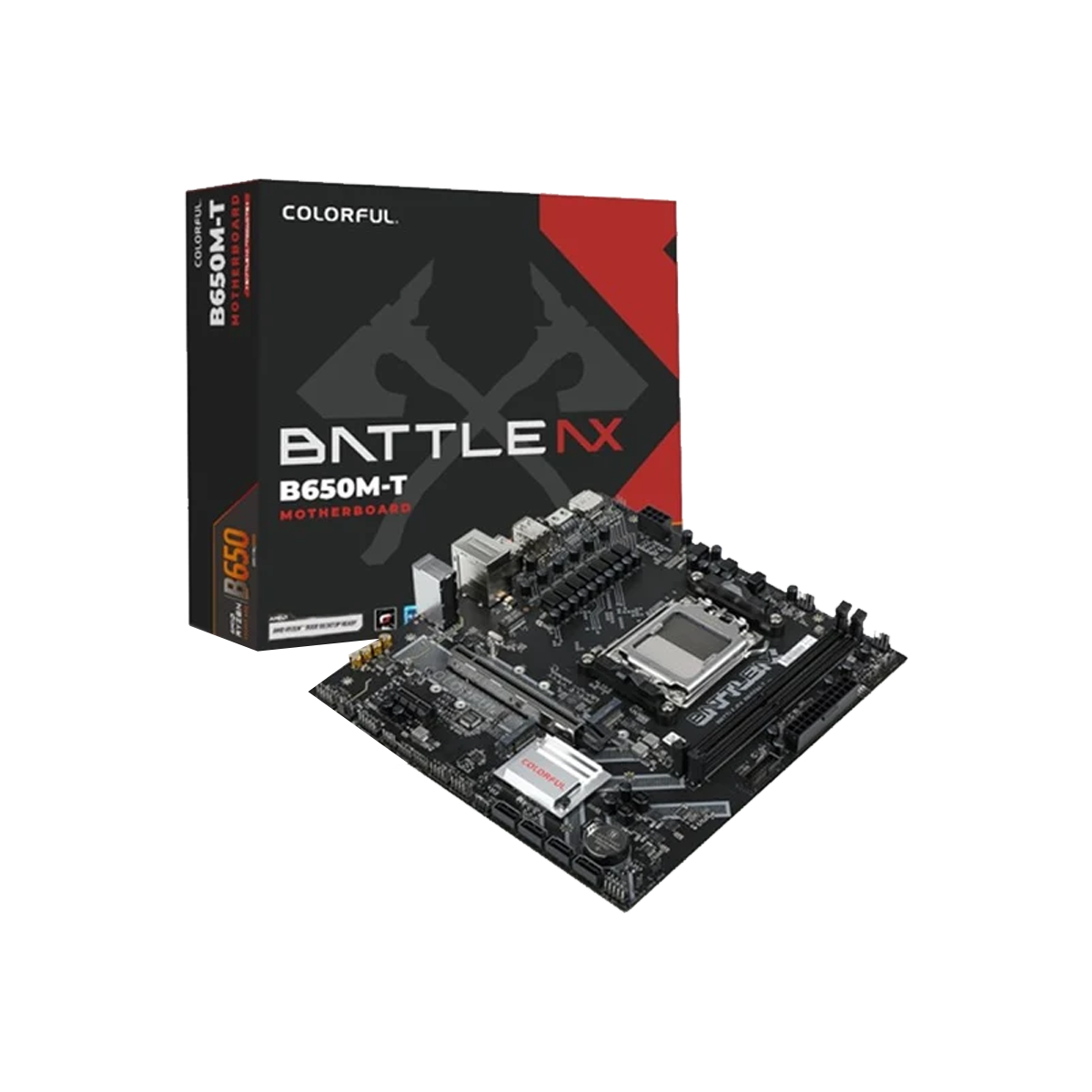

Colorful BATTLE-AX B650M-T V14 AMD AM5 DDR5 M-ATX Gaming Motherboard

Colorful BATTLE-AX B650M-T V14 AMD AM5 DDR5 M-ATX Gaming Motherboard

Brand: Colorful

Regular: 799.00 SAR

Sale: 799.00 SAR
Regular

Unit Price: per

Price includes VAT.

MODEL NO : 110016221734

Get an additional discount 15%

Use code: SAB15

Email me when this is available

Key Features:

Provides 2 M.2 SSD slots, supporting PCIe 5.0 SSD.
Equipped with a 2.5G wired network card.
Supports iGame Center lighting control software, allowing synchronized adjustment of heatsink, cooling fan, and memory lighting effects.
I/O backplate supports one-click BIOS upgrade.
Six protection technologies ensure more stable product operation.
200 rigorous testing processes guarantee quality.
PCB atomization process has been fully upgraded.

Details
Tech Specs
Downloads
FAQ

NEXT-GEN GAMING POWER

Unlock powerful performance with AMD B650, DDR5 memory support, and PCIe 5.0 expansion in a compact M-ATX design.

Memory & Storage

Support up to 96GB DDR5 memory at speeds up to 7200MHz (OC). Dual M.2 slots, including PCIe 5.0 SSD support, deliver flexible, high-speed storage.

Connectivity & Expansion

Experience 2.5G LAN, PCIe 5.0 graphics expansion, versatile USB connectivity, and immersive 7.1-channel audio for a well-connected gaming setup.

Reliability, Protection & Control

Six protection technologies and 200 rigorous testing processes support dependable operation. Synchronize RGB lighting with iGame Center, monitor system temperatures and fan speeds, and upgrade BIOS with one click

BATTLE-AX B650M-T V14
General Information	Model : BATTLE-AX B650M-T V14 Product Series : BATTLE-AX series Chipset : AMD B650 Processor Support : AMD Ryzen 7000 / 8000 / 9000 Series CPU Socket : AMD AM5 Form Factor : Micro-ATX (M-ATX) Dimensions : 230 × 220 mm
Memory	Memory Type : DDR5 Memory Slots : 2 DIMM Slots Maximum Capacity : 96GB (48GB per slot) Memory Speed : Up to 7200MHz (OC) Supported Speeds : 4800 / 5000 / 5200 / 5400 / 5600 / 5800 / 6000 / 6200 / 6400 / 6600 / 6800 / 7000 / 7200MHz (OC) XMP Support : Yes AMD EXPO Support : Yes Dual-Channel Memory : Yes
Storage	M.2 Slots : 2 M.2_1 : PCIe 5.0 / 4.0 x4, 2242 / 2260 / 2280 SSD (CPU Channel) M.2_2 : PCIe 4.0 x4, 2242 / 2260 / 2280 SSD (Chipset Channel) SATA Ports : 4 × SATA 6Gb/s RAID Support : Yes, depending on CPU and storage configuration Ryzen 9000 RAID : 0 / 1 / 5 / 10 Ryzen 8000 RAID : 0 / 1 Ryzen 7000 RAID : 0 / 1 / 10
Expansion Slots	PCIe x16 Slot : 1 × PCIe 5.0 x16 PCIe x1 Slot : 1 × PCIe 4.0 x1

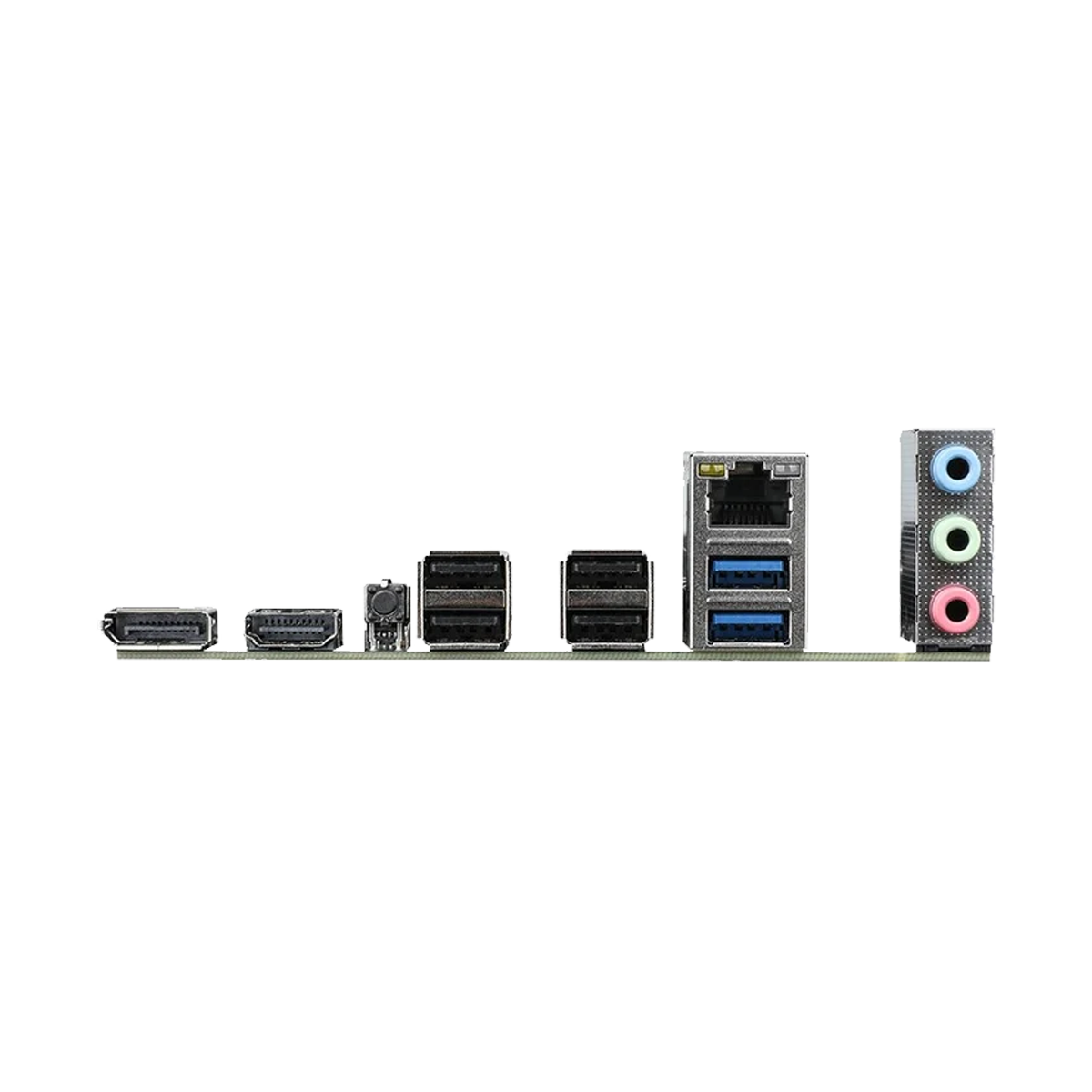

Rear I/O Ports	USB 2.0 : 4 Ports USB 3.2 Gen 1 Type-A : 2 Ports (5Gbps) DisplayPort : 1 × DP 1.2 (Up to 4K 60Hz) HDMI : 1 × HDMI 1.4 (Up to 4K 30Hz) LAN : 1 × 2.5G Ethernet BIOS Update Button : Yes Audio Jacks : 3 (Audio Input / Audio Output / Microphone)
Onboard Connectors	USB 2.0 Headers : 2 (Support up to 4 additional USB 2.0 Type-A ports) USB 3.2 Gen 1 Header : 1 (Supports 2 additional Type-A ports) CPU Fan Header : 1 System Fan Header : 1 Water Cooling Pump Header : 1 5V 3-Pin ARGB Headers : 3 Front Audio Header : 1 Front Panel Header : 1 Speaker Header : 1 COM Port Header : 1 Clear CMOS Jumper : 1 BIOS Burner Header : 1 RGB Lighting Control Jumper : 1 POST Card Header : 1
Networking	Network Controller : Realtek RTL8125BG Ethernet Speed : 2.5Gbps
Audio	Audio Chipset : Realtek ALC897 Audio Channels : Up to 7.1-Channel High-Definition Audio
BIOS	BIOS Type : 256M UEFI BIOS Multiple Language Support : Yes
Power Management	ACPI Wake Support : S3 / S4 Network Wake : S5 Wake-on-LAN USB Wake Support : Yes Scheduled Power-On : Yes Call/Remote Boot : Supported as specified by manufacturer
Hardware Monitoring	CPU Fan Speed Monitoring : Yes System Fan Speed Monitoring : Yes CPU Temperature Monitoring : Yes System Temperature Monitoring : Yes Voltage Monitoring : Yes
