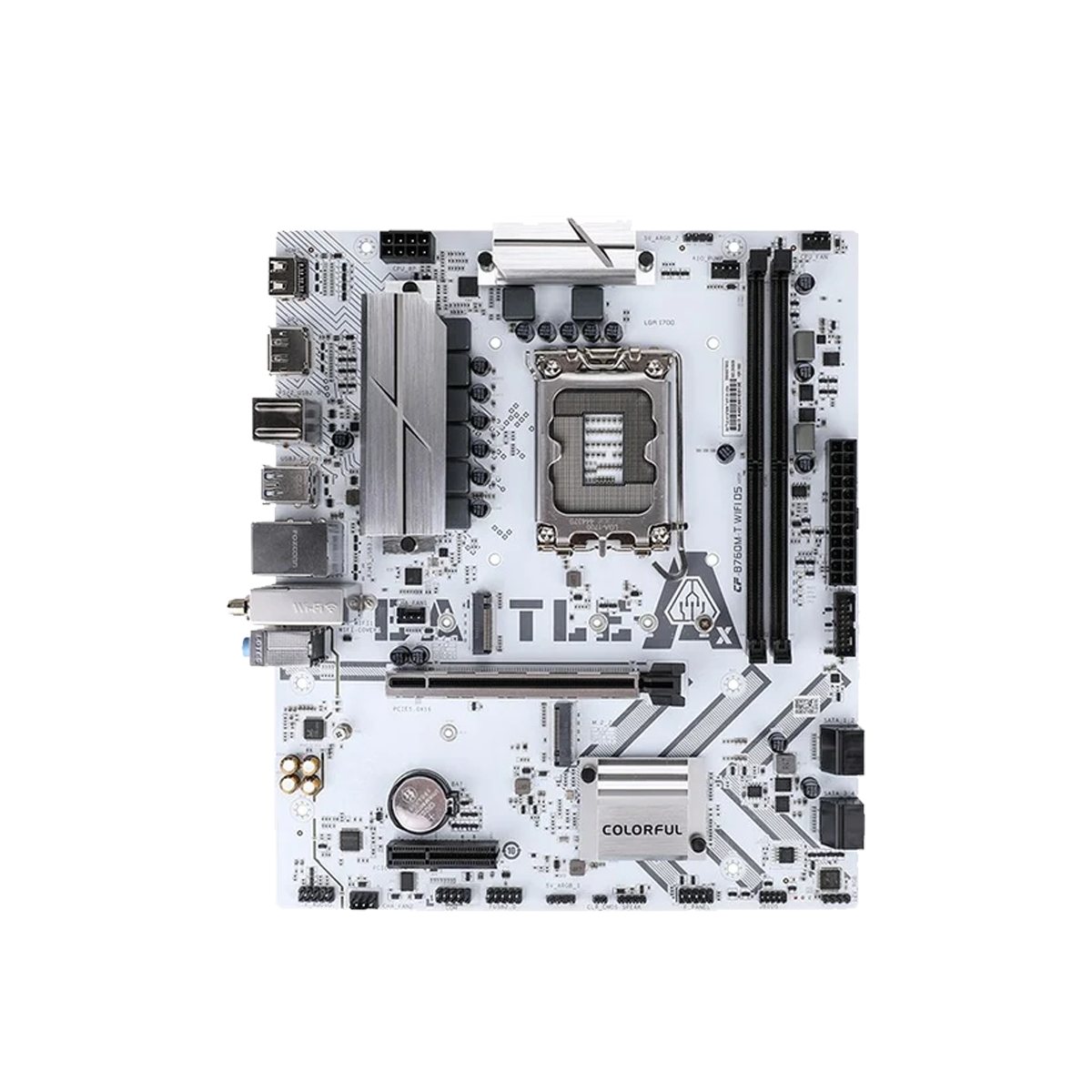

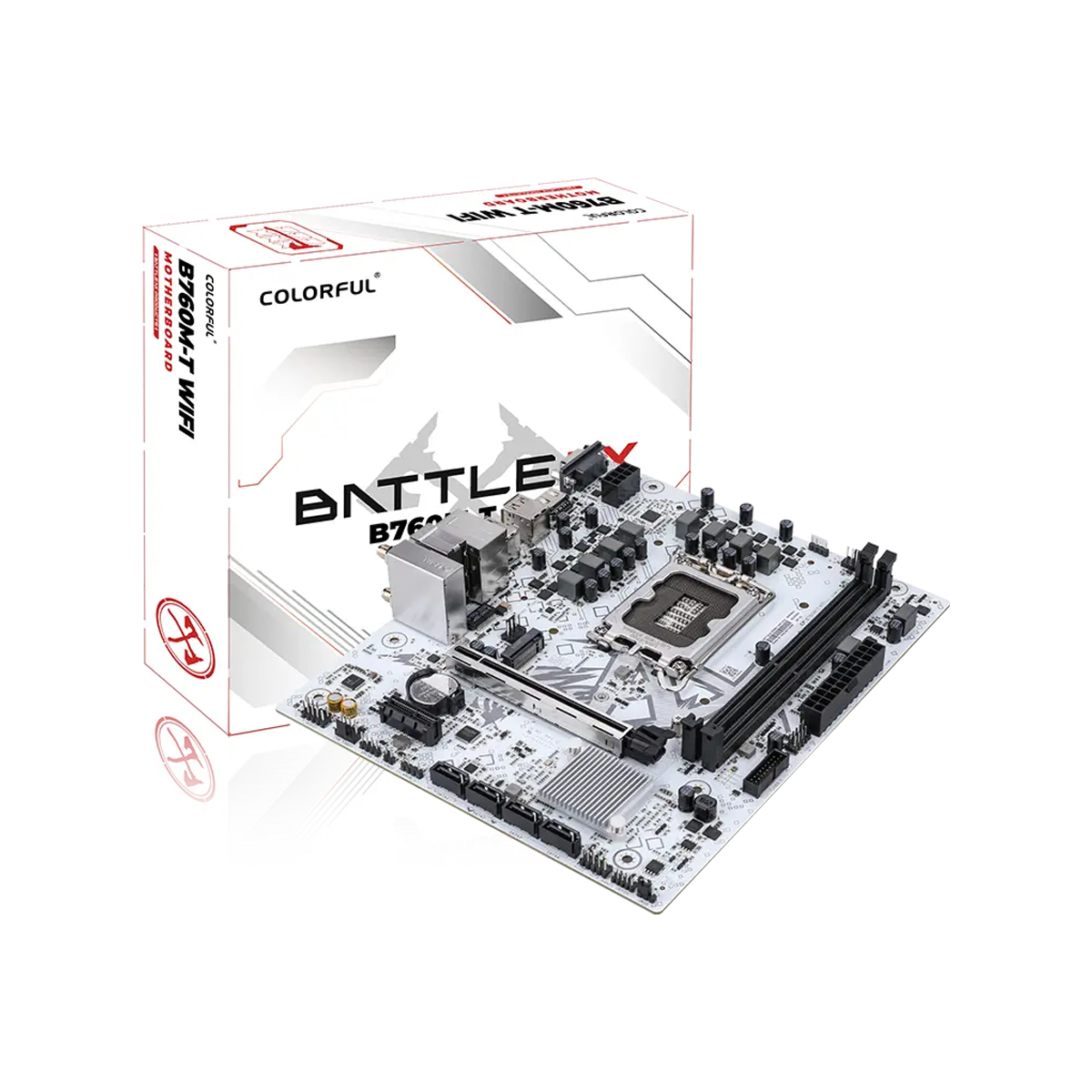

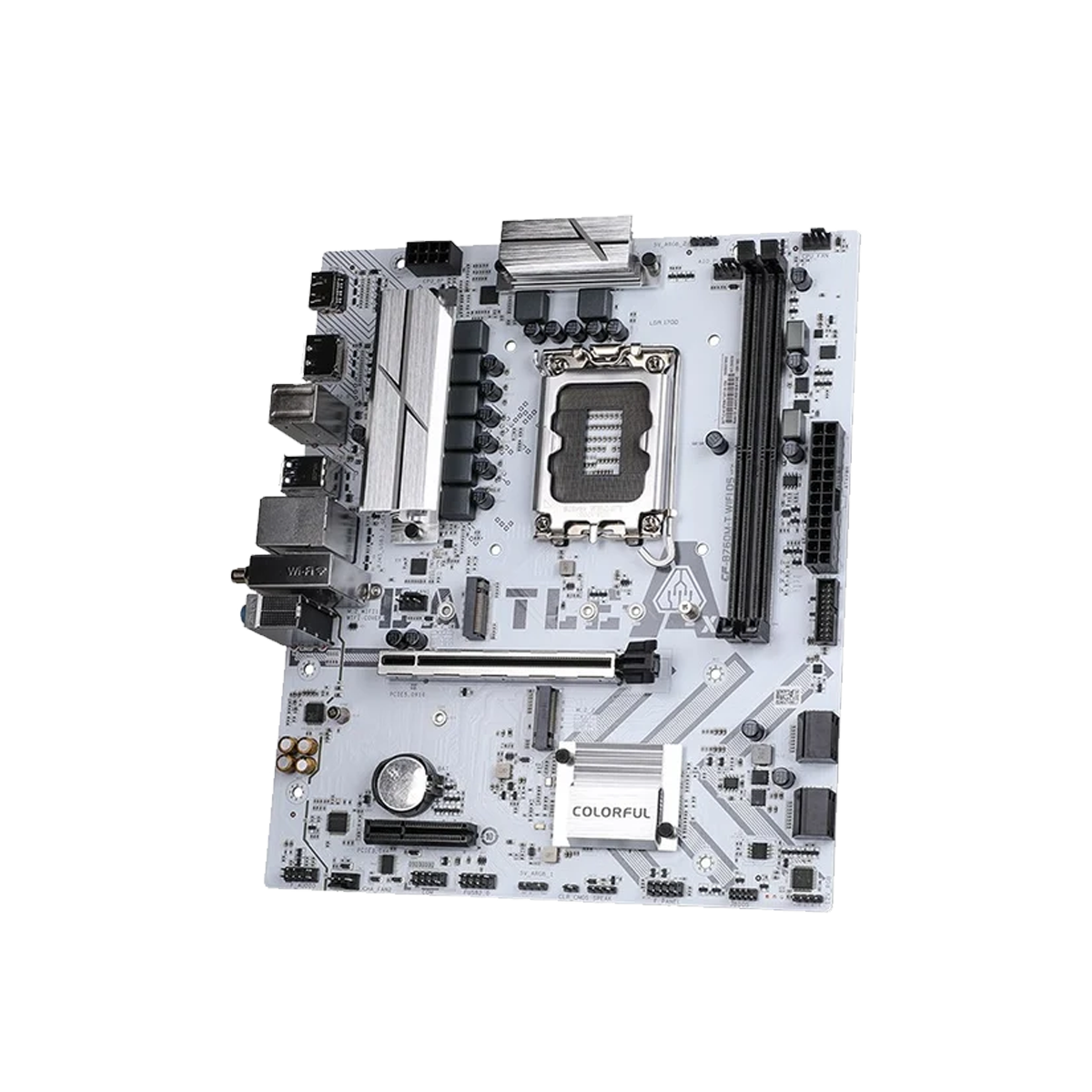

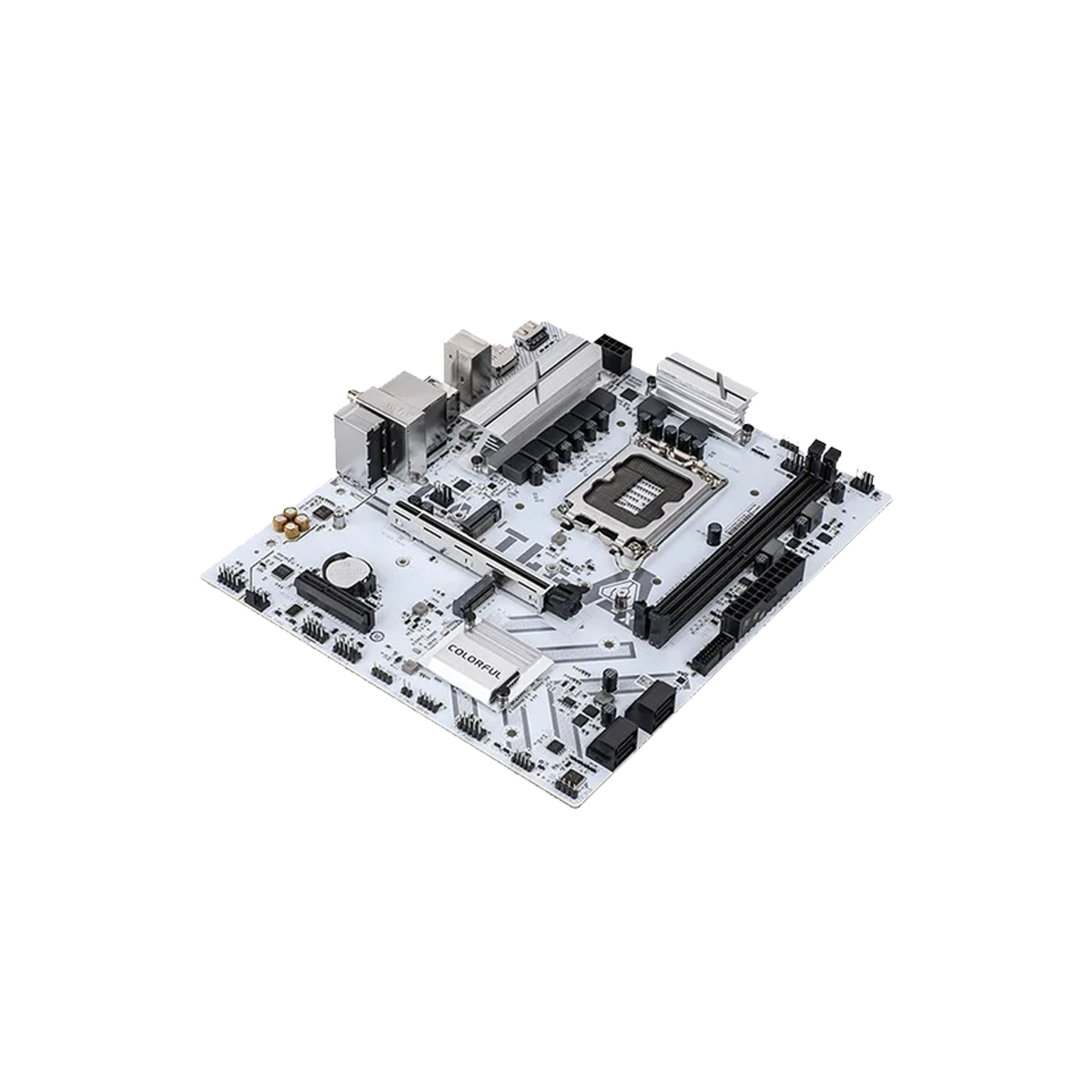

Colorful BATTLE-AX B760M-T WIFI D5 V20A DDR5 M-ATX Gaming Motherboard – White

Colorful BATTLE-AX B760M-T WIFI D5 V20A DDR5 M-ATX Gaming Motherboard – White

Brand: Colorful

Regular: 449.00 SAR

Sale: 449.00 SAR
Regular

Unit Price: per

Price includes VAT.

MODEL NO : 110001221510

Get an additional discount 15%

Use code: SAB15

Email me when this is available

Key Features:

BATTLE-AX series exclusive customized white motherboard
Equipped with Realtek 2.5G high-speed wired network card and AX101 WiFi 6 wireless network card, supporting Bluetooth 5.2
Provides 4 USB 3.2 Gen 1 Type-A high-speed interfaces
Provides 2 USB 2.0 interfaces
Provides 2 PCIe 4.0 x4 M.2 SSD slots, 1 PCIe 5.0 x16 graphics card slot
Provides 2 5V 3-pin ARGB pins, 1 12V 4-pin RGB pin
Provides HDMI+DP display interface
Supports iGame Center lighting control software, which can adjust the lighting effects of the radiator, cooling fan and memory synchronously
Six major protection technologies, more stable product operation
200 process strict testing, quality guaranteed
PCB atomization process fully upgraded

Details
Tech Specs
Downloads
FAQ

BUILT FOR YOUR NEXT GAMING BUILD

Colorful BATTLE-AX B760M-T WIFI D5 V20A DDR5 Featuring Intel® 12th, 13th and 14th Gen processor support, DDR5 memory up to 96GB, PCIe 5.0 graphics expansion, and a clean white Micro-ATX design.

NEXT-GEN SPEED & CONNECTIVITY

Equipped with dual PCIe 4.0 x4 M.2 SSD slots, 2.5G LAN, Wi-Fi 6, Bluetooth 5.2, and four USB 3.2 Gen 1 ports for fast and reliable connectivity.

CUSTOMIZE YOUR GAMING EXPERIENCE

Enhance your setup with a distinctive white motherboard, dual 5V ARGB headers, a 12V RGB header, and iGame Center software for synchronized lighting control.

ENGINEERED FOR STABILITY

Built with six protection technologies, rigorous 200-process testing, and an upgraded PCB atomization process, plus HDMI 2.0 and DisplayPort 1.2 supporting up to 4K 60Hz.

BATTLE-AX B760M-T WIFI D5 V20A
General Information	Model : BATTLE-AX B760M-T WIFI D5 V20A Product Series : BATTLE-AX series Chipset : Intel B760 Processor : Supports 14th / 13th / 12th Generation Intel Core, Pentium and Celeron processors CPU Socket : Intel LGA 1700 Form Factor : M-ATX Dimensions : 245 × 210 mm
Memory	Memory Type : DDR5 Memory Slots : 2 DDR5 DIMM slots Maximum Memory Capacity : 96GB (48GB per slot) Memory Frequency : DDR5-7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800MHz Intel XMP Support : Yes Dual-Channel Memory : Yes
SATA Ports	M.2 Slots : 2 M.2_1 Slot : Supports 2242 / 2260 / 2280 M.2 SSD (PCIe 4.0 x4, CPU channel) M.2_2 Slot : Supports 2242 / 2280 M.2 SSD (PCIe 4.0 x4, chipset channel) SATA Interfaces : 4 × SATA 6Gb/s RAID Support : RAID 0 / 1 / 5 / 10 (SATA drives)

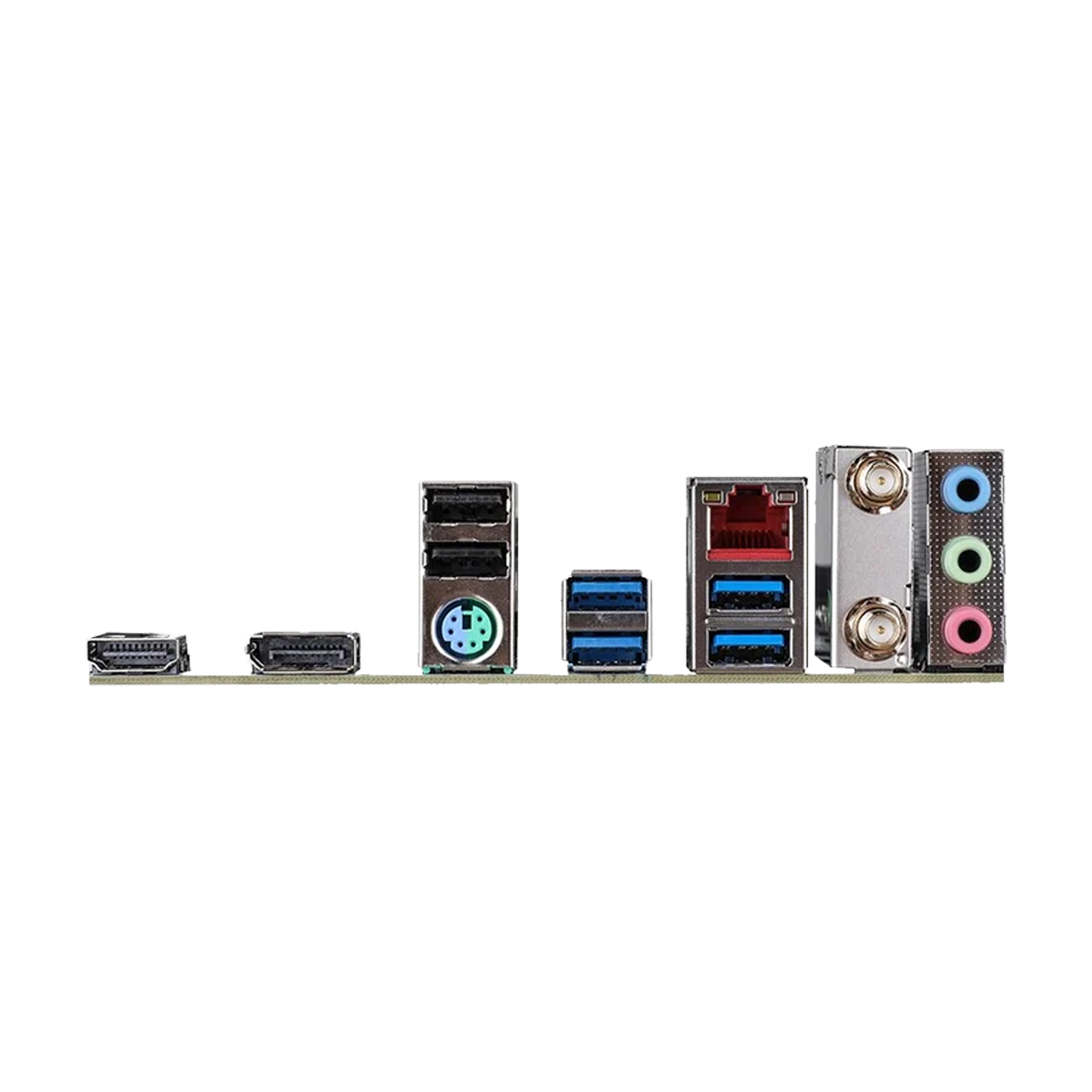

Board I/O	Rear USB 2.0 : 2 ports Rear USB 3.2 Gen 1 Type-A : 4 ports (5Gbps) DisplayPort : 1 × DP 1.2 (up to 4K 60Hz) HDMI : 1 × HDMI 2.0 (up to 4K 60Hz) PS/2 : 1 port Network Port : 1 × 2.5G Ethernet Wi-Fi Antenna Interfaces : 2 Audio Interfaces : 3 (audio input / audio output / microphone) CPU Fan Header : 1 System Fan Headers : 2 Water Cooling Pump Header : 1 USB 2.0 Header : 1 (supports 2 additional USB 2.0 Type-A ports) USB 3.2 Gen 1 Header : 1 (supports 2 additional USB 3.2 Gen 1 Type-A ports) 5V 3-Pin ARGB Headers : 2 12V 4-Pin RGB Header : 1 Front Audio Header : 1 Front Panel Header : 1 Speaker Header : 1 Serial Port Header : 1 Clear CMOS Jumper : 1 BIOS Burner Header : 1
Expansion Slots	PCIe 5.0 x16 Slot : 1 PCIe 3.0 x4 Slot : 1
BIOS	BIOS : 128M UEFI Multiple Language Support : Yes
Power Management	ACPI Wake Support : S3 / S4 Network Wake : S5 Wake-up Scheduled Startup : Yes
Hardware Monitor	CPU Fan Speed Control : Yes System Fan Speed Control : Yes CPU Temperature Monitoring : Yes System Temperature Monitoring : Yes Voltage Monitoring : Yes
LAN	Network Controller : Realtek RTL8125BG 2.5Gbit Wireless Network Card : Intel AX101 Wi-Fi 6 Bluetooth : 5.2
Audio	Audio Chip : Realtek ALC897 Audio Channels : Up to 7.1 channels
Configuration	Form Factor : M-ATX Dimensions : 245 × 210 mm
